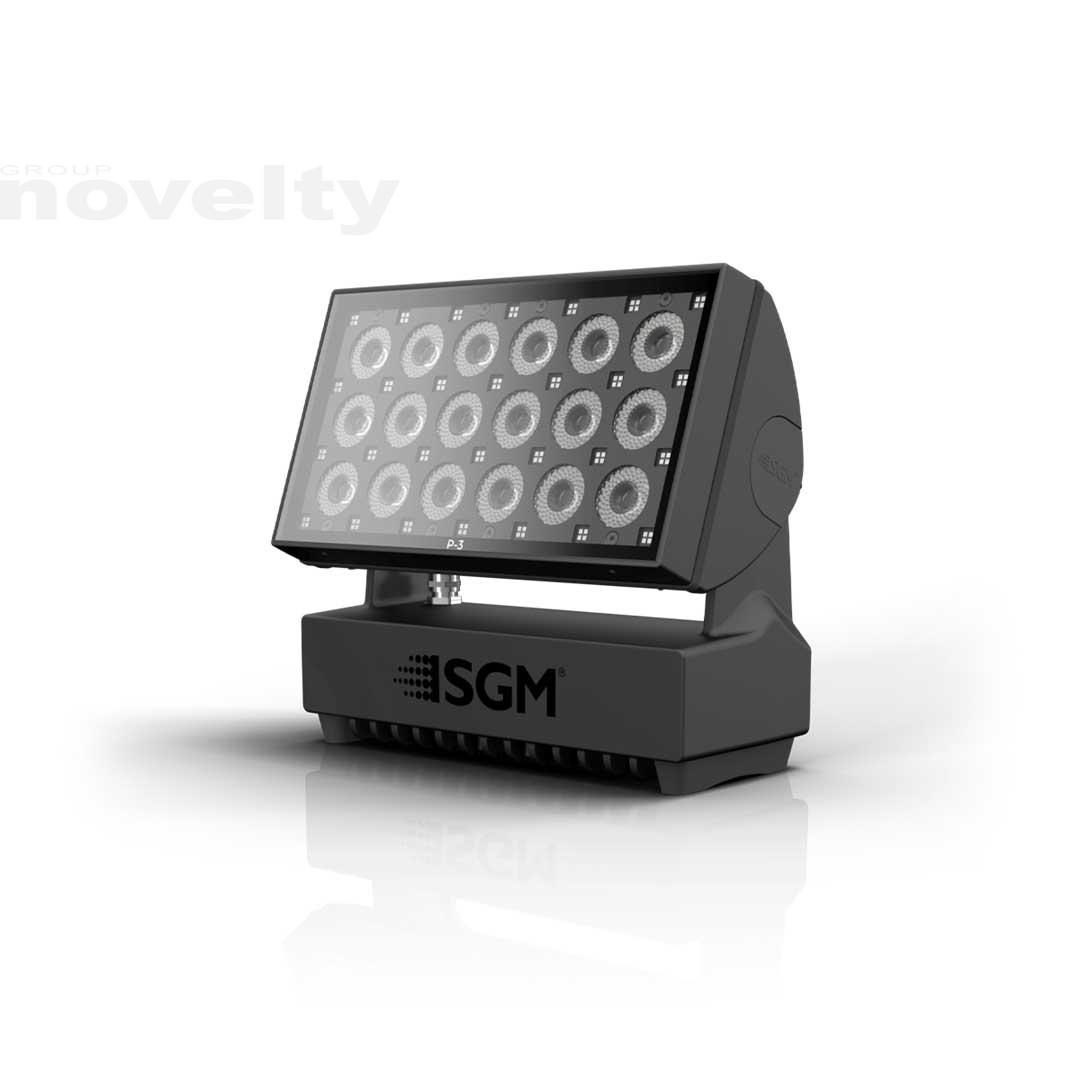

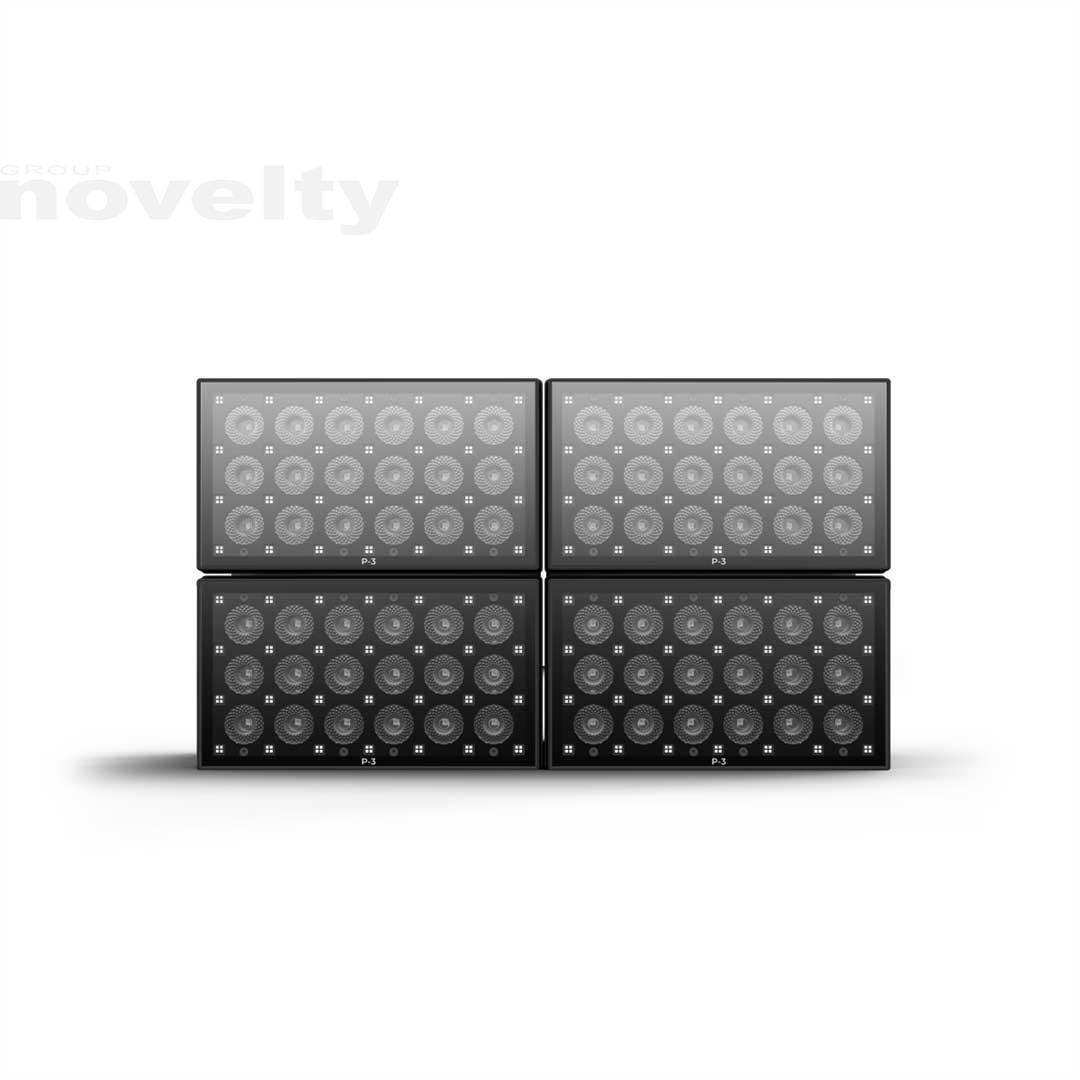

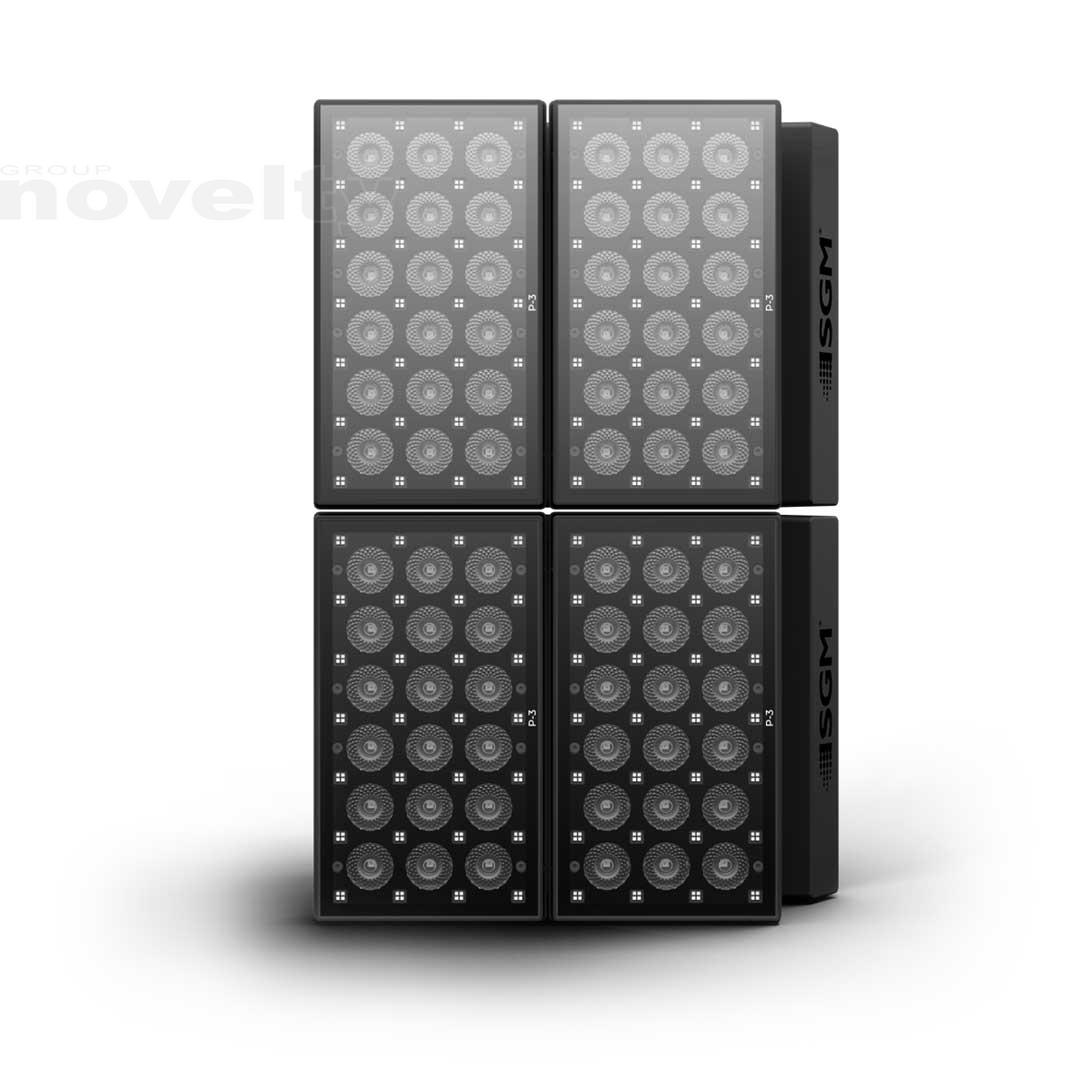

SGM P-3 Vision

Descriptions détaillées

Specification

Optical Data

• LED expected lifetime (L70) : 50,000 hours
• Lightsource :
  • 28 x RGB Clusters (112 total RGB LEDs)
  • 18 x 15W RGBW LEDs
• Pixel size : 6 x 6 mm Quad LED Pixel Clusters

Photometric

• Native beam angle(s) :
  • 10° (with 10° lens)
  • 25° (with 25° lens)
  • 35° (with 35° lens)
• Preliminary light output all LEDs on : 12700 lm

Physical

• Corrosion class : C5 (ISO 12944:2018)
• IK rating : IK09
• IP class : IP66
• Lens material : Tempered glass front
• Material :
  • Aluminium
  • PC/ASA
  • Steel
• Net dimensions L x H x W : 290 x 252 x 124 mm
• Net weight : 8.3 kg (18.3 lbs)
• Vibration Rating : 3G

Features

• Addressable pixels : 3 (Wash) + 28 (Vision)
• Color calibration : SGM proprietary with Dynamic Drive
• Dehumidifier : Head
• Remote monitoring : Yes (Real Time)
• Tilt locking system : Locking system with angle indicator
• View angle : 110°

Electrical

• Electrical protection : Overload protection with automatic recover
• Input voltage, nominal : 115 - 277 VAC; 50 / 60 Hz
• Max inrush current 230VAC : 60 A
• Max power consumption : 360 W
• Max power thru @ 100 V : 16 A
• Max power thru @ 230 V : 14 A
• Power factor : 0.99 PF (230 V)
• Power Supply Unit : High-efficiency electronic switch-mode
• Standby power consumption : 6 W

Programming and Control

• 16-bit control : Dimmer, Red, Green, Blue, White, Pixels
• Cabled DMX : 5 pin XLR input/output
• Data communication : 100 Mb
• DMX channels : 7 - 128
• DMX modes : 9
• Protocol :
  • CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
  • USITT DMX512A
  • RDM ANSI E1.20
  • Art-Net (up to 120 Hz)
  • sACN
• Setting and addressing :
  • OLED graphical display / 4 buttons
  • RDM ANSI E1.20
• Standalone mode : Quick Color
• Wireless DMX : Lumen Radio with RDM

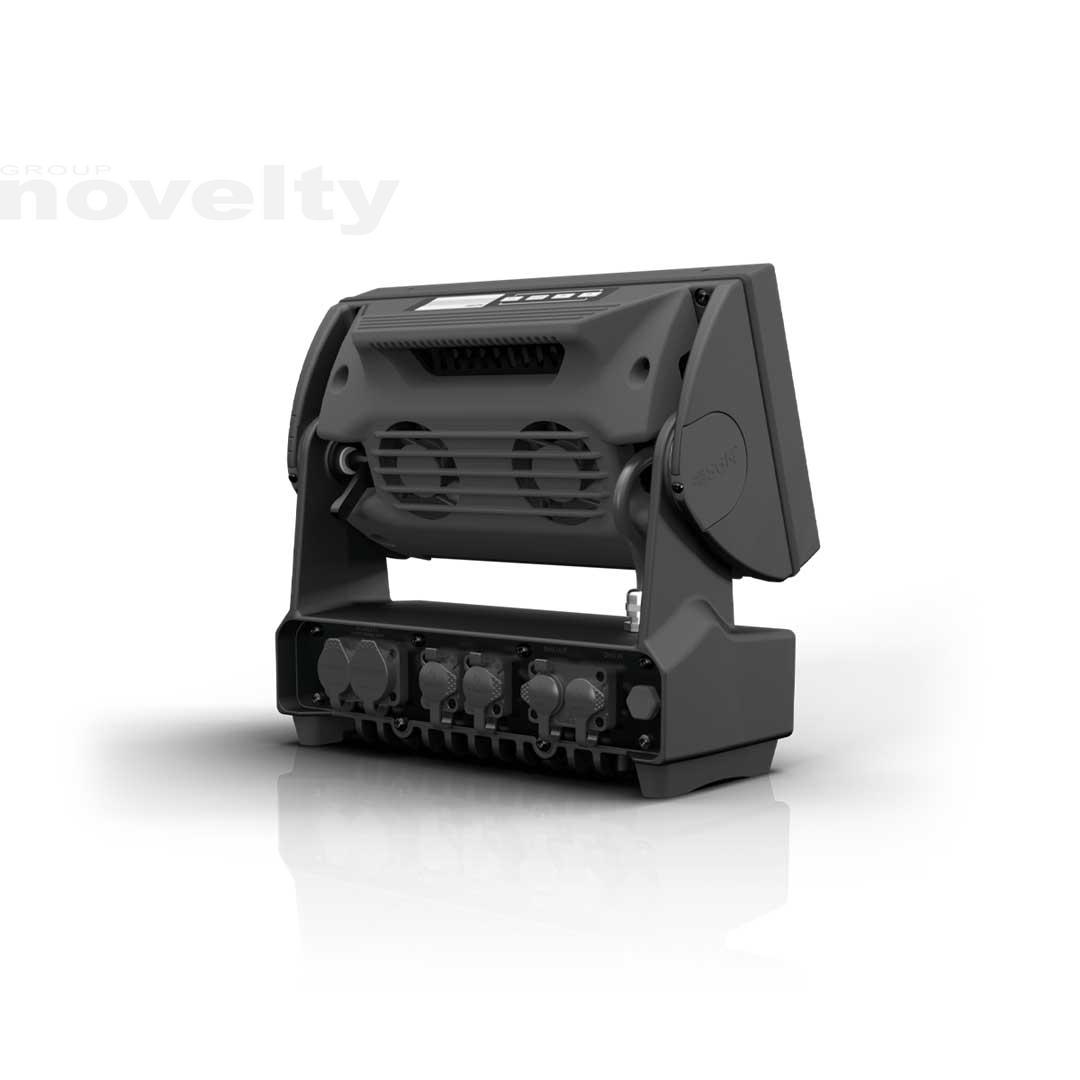

Connections

• DMX data in/out :
  • IP66 XLR 5-pin connector, Female
  • IP66 XLR 5-pin connector, Male
• Ethernet Connections : IP66 RJ45 Locking Chassis Mount Connections
• Power : Power input connector & link-thru

Installation

• Mounting point : 2 quarter-turn locking points for one Omega bracket
• Orientation : Any
• Safety features : Bottom mount for safety wire

Thermal

• Cooling : Active, Forced Air, Temperature-regulated
• Humidity (max.) : 98 %
• Temperature range, operating : -40°C to 50°C
• Temperature range, operating max : 50 °C
• Temperature range, operating min : -40 °C
• Temperature range, start-up : -20°C to 50°C
• Temperature range, storage : -40°C to 80°C
• Total heat dissipation, max power : 1228.3 BTU per hour
• Total heat dissipation, standby : 20.5 BTU per hour

Conforms To

• CE - 2014/30/EU: EMC Directive :
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 55032
  • EN 55035
• CE - 2014/35/EU: Low Voltage Directive :
  • EN 60598-1
  • EN 60598-2-17
  • EN 62471
  • EN 60529
• RoHS2 Directive : 2011/65/EU
• UL : UL Std. 1573

Certified To

• CSA :
  • CSA-E598-2-17-98, Ed: 1
  • CSA E60598-1, Ed: 3
