SGM P5 Wash Light (43°)

Descriptions détaillées

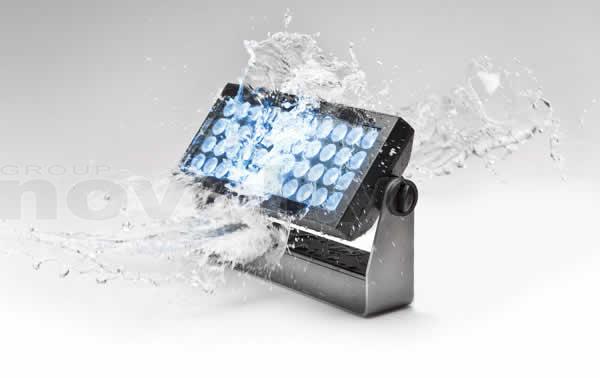

The P-5 has taken the popular Palco 5 as its design base and transformed into an IP65 rated fixture - suitable for outdoor use.

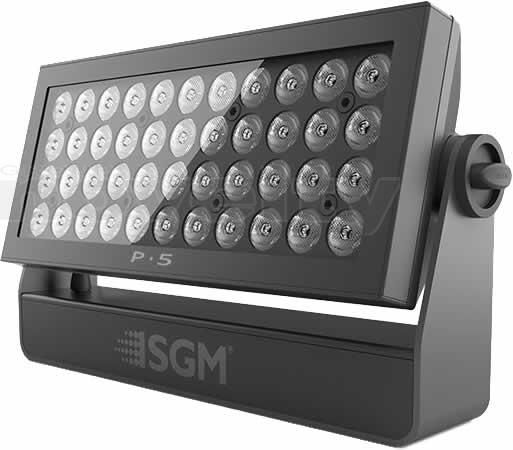

The low-profile fixed, rectangular, full-color LED wash light incorporates 44 x RGBW 10W LEDs. Combined with a small footprint, the power consumption is reduced to just 420W while the LED source life expectancy is 50,000 hours.

Lenses are interchangeable via 15°, 21°and 43° lens kits and the fixture boasts 3, 4, 6, 8, 9 or 10 DMX channels. Set-up is via an OLED graphic 5-button display.

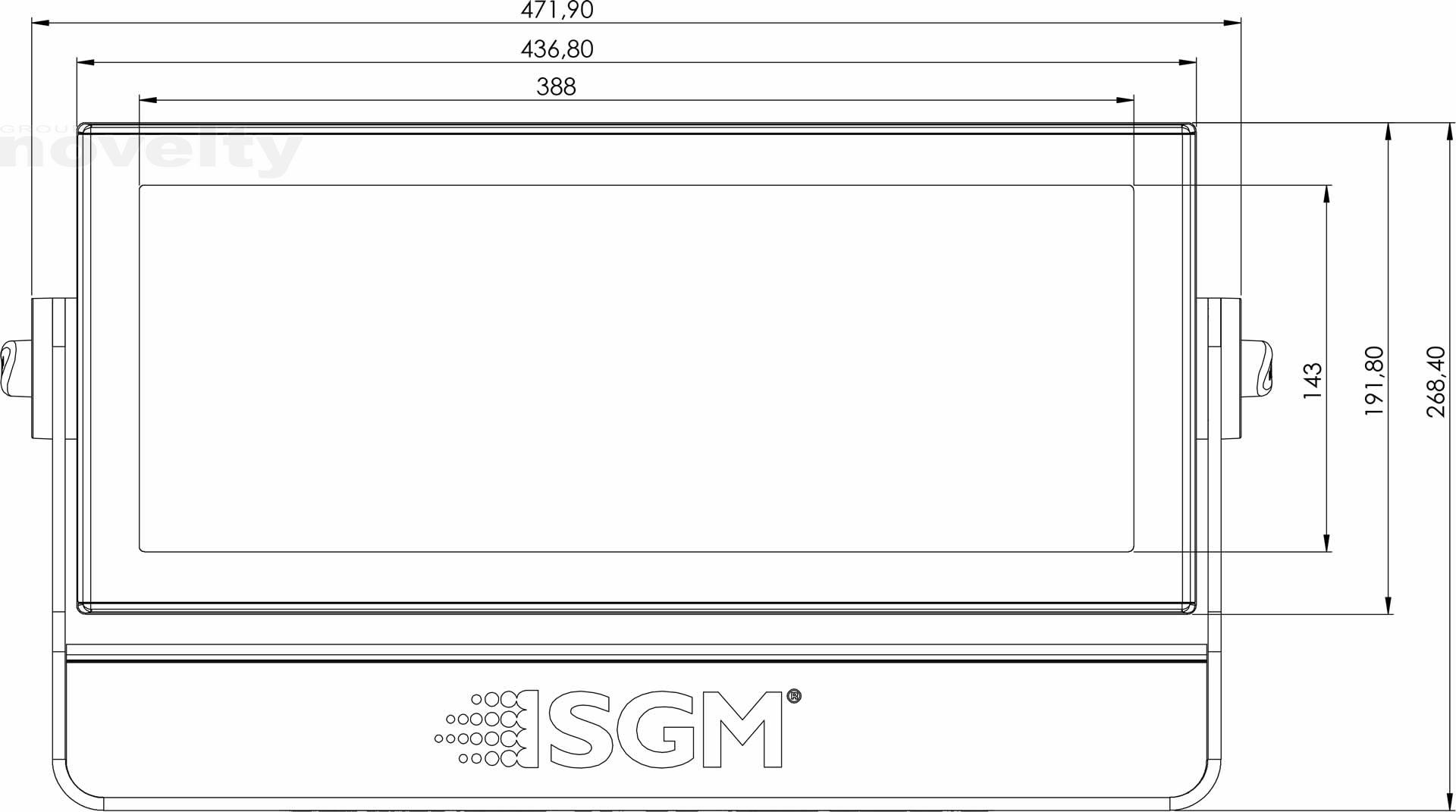

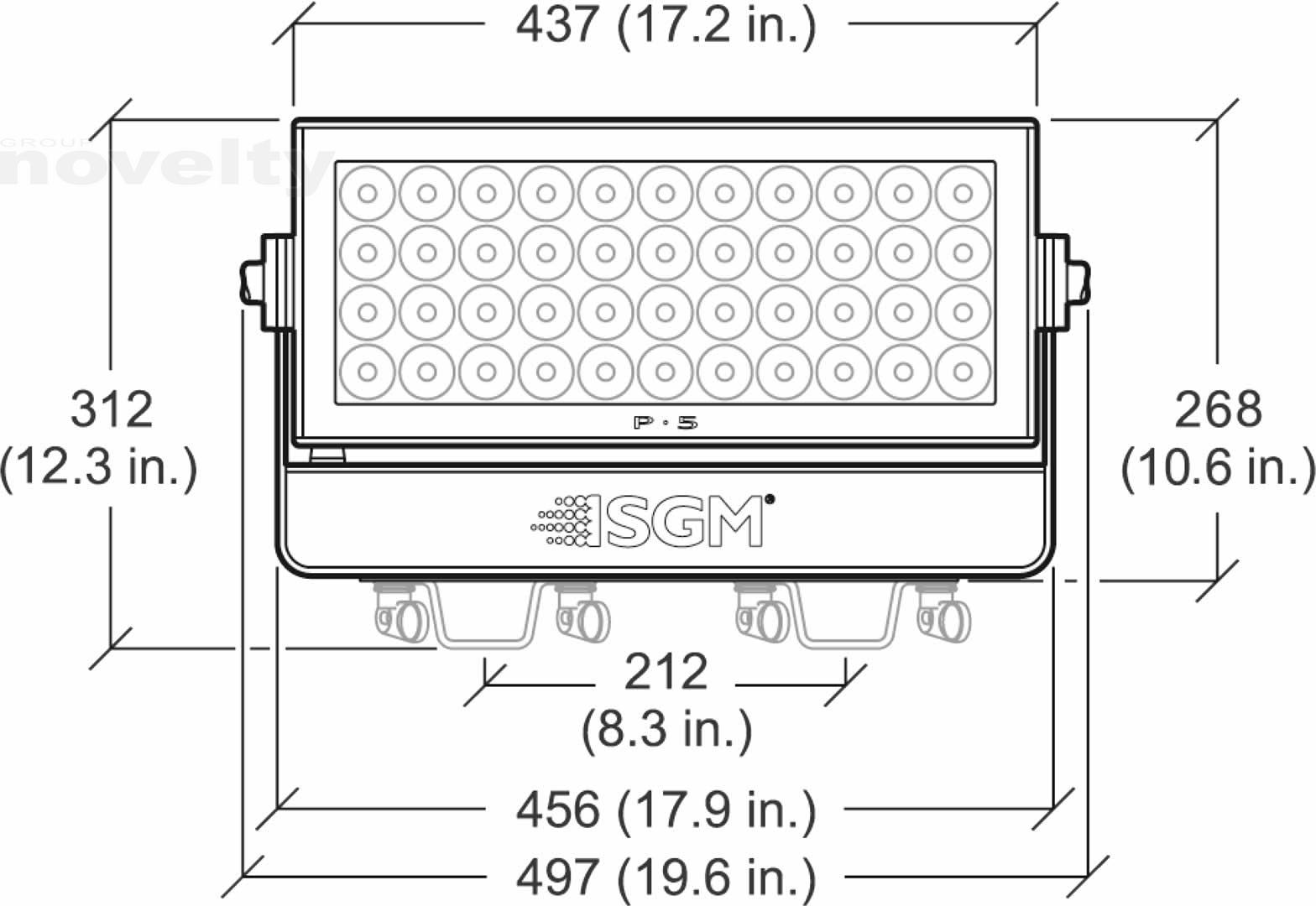

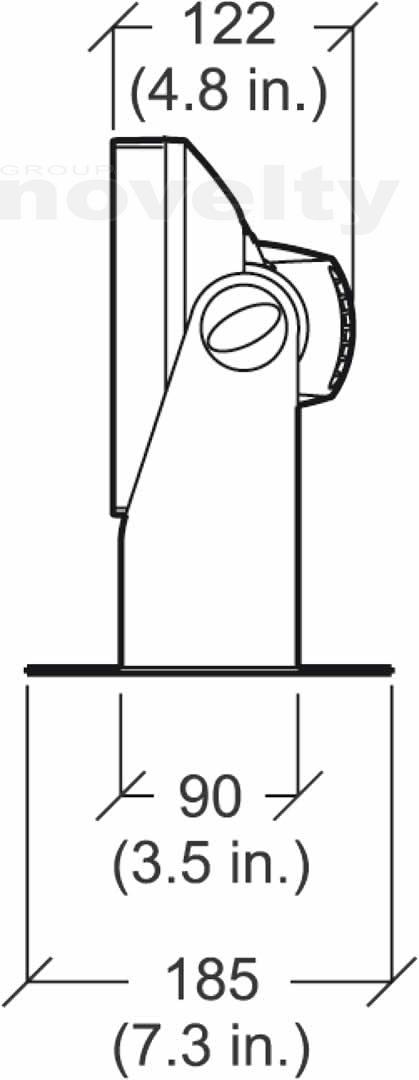

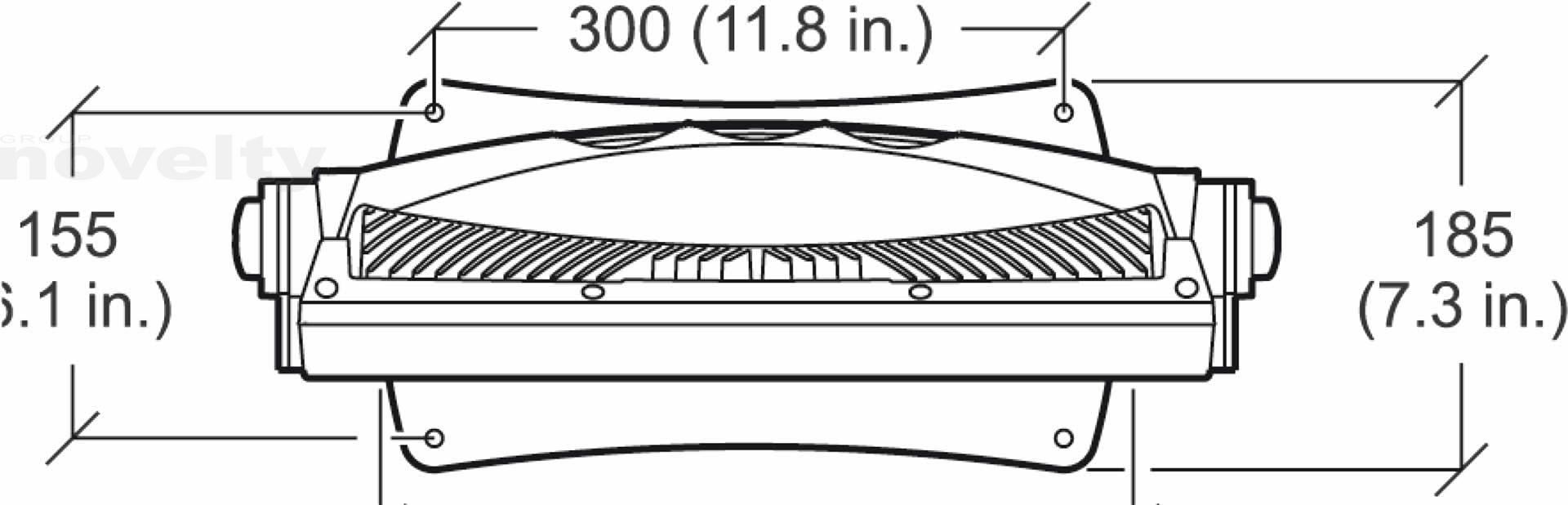

Other features include: a simple menu structure; upgradeable software (via uploader cable); IP65 rating (IP55 fan module); standard 5-pin XLR for DMX in/out; compact dimensions of (LxHxW) 497 x 268 x 122 mm.

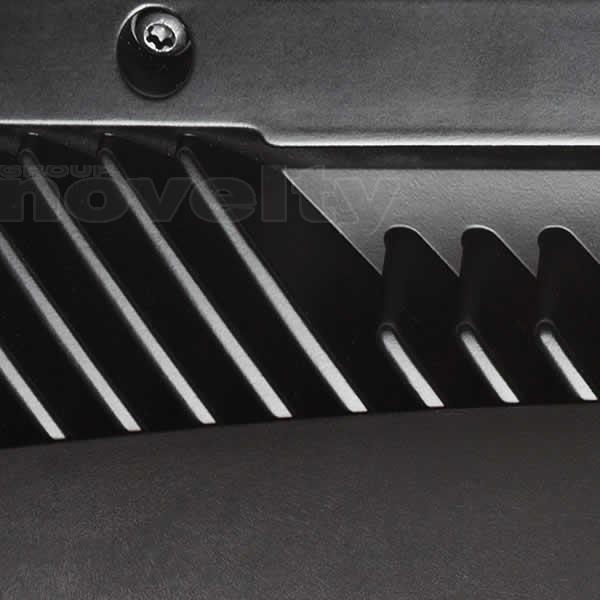

As with all SGM’s new LED models, cooling methods have been improved via rectangular heat-sinks, set-up and address procedures improved with the aid of internal diagnostics, and control procedures implemented to ensure flicker-free fixtures.

P-5, P-5 W (white) and P-5 TW (tunable white) luminaries are DMX-controllable, low-profile, IP65-rated, rectangular, LED wash lights. The standard P-5 offers full RGBW color mixing, color temperature control and incorporate 44 10 W RGBW Cool White Emitter LED’s. The P-5 W is similar, but incorporating white-emitting LEDs.

The P-5 TW offers the ability to adjust white color temperature to 2200, 3000, 4000 or 5300K. The P-5’s all provide built-in wireless DMX support, stand-alone programs, dimming, and a lamp life expectancy of 50,000 hours*. The P-5’s also offer a variation of beam angles with 15°, 21° or 43° interchangeable lenses.

Optics

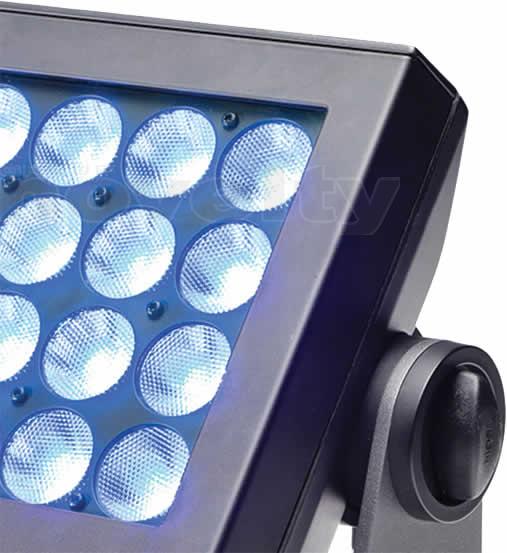

• Light source : 44 x High power 10W RGBW LEDs
• LEDs expected lifetime : 50,000 hours*
• Interchangable lens option : 15°, 21° & 43°

Photometric

• Light output : 23,500 lumen (43° lens)
• Efficacy : 58 lm/W

Features

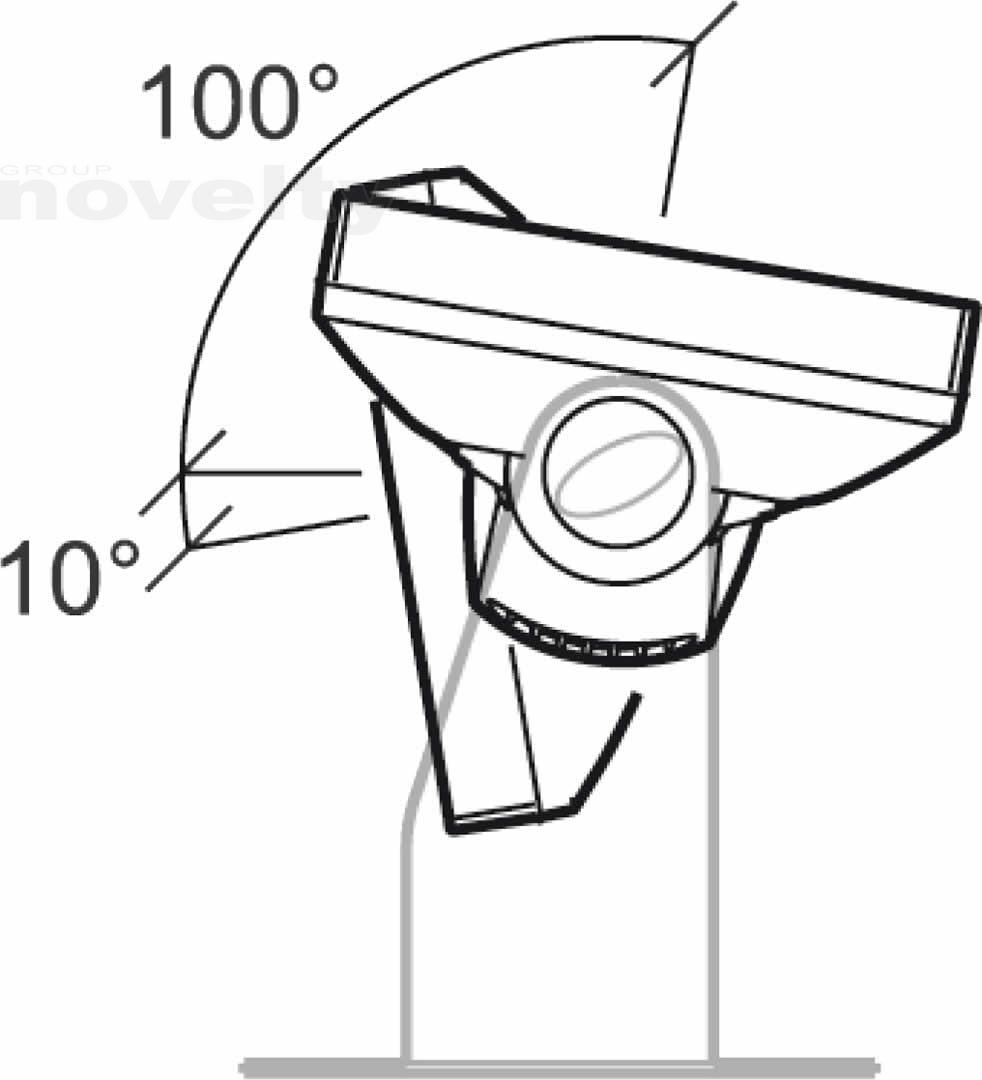

• Pan/Tilt : + / - 90°

Electrical

• AC Power : 208 - 240 V Nominal 50/60 Hz
• Maximum power consumption : 450 W (all LEDs on)
• Typical power consumption : 420 W (all LEDs on)
• Power factor : 0.98 PF (230 V)

Programming and Control

• Protocol : USITT DMX512 A
• Setting and addressing
  • Wireless DMX (LumenRadio)
  • RDM
  • Stand alone mode (programmable by RFID)

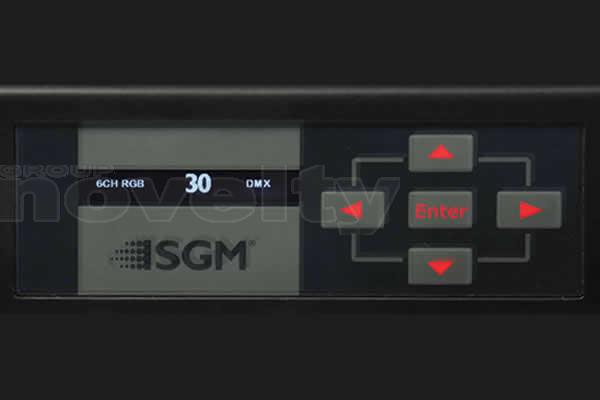

  • Oled graphical display / 4 buttons
  • Software upgradeable via Uploader cable (P/N:83062011)
• DMX channels : 3, 4, 6, 8, 9 or 10

Physical

• Material : Aluminium
• Lens : PE and tempered glas front
• IP class : IP65

Installation

• Mounting : Any, but facing 100% down for permanent installation
• Rigging possibilities : Floor stand (included) or hanging (Omega Clamps included)
• Safety features : Bottom mount for Safety wire

Thermal

• Temperature range, Operating : −10° − 40°C (−14° − 104°F)
• Temperature range, Start-up : −10° − 40°C (−14° − 104°F)
• Humidity (max.) : 98%

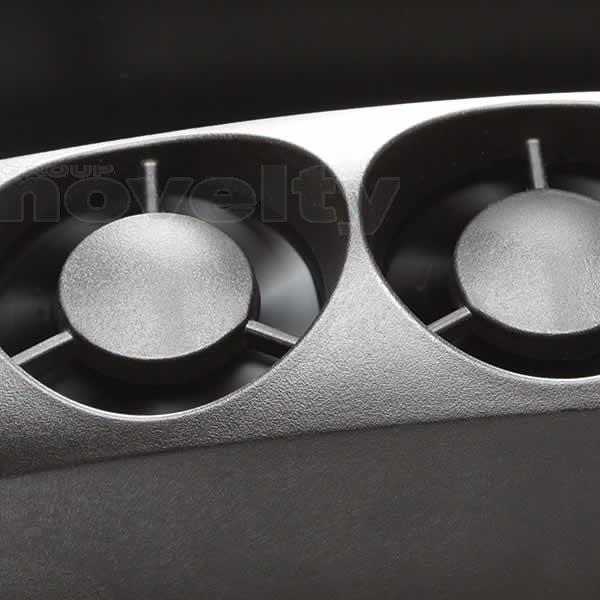

• Cooling : Active, Forced air, temperature-regulated, low noise

Connections

• DMX data in/out : IP65 Neutrik HD locking XLR 5-pin cable 0.5m, for DMX in and out / Power cable 0.5m with bare ends

Certified to / Conform to

• CSA Std. C22.2 No. 166
• UL Std. 1573
• 2006/95/EC: Low Voltage Directive : EN 60598-1, EN 60598-2-17, EN 62471
• 2004/108/EC: EMC Directive : EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3
• RoHS2 Directive : 2011/65/EU
