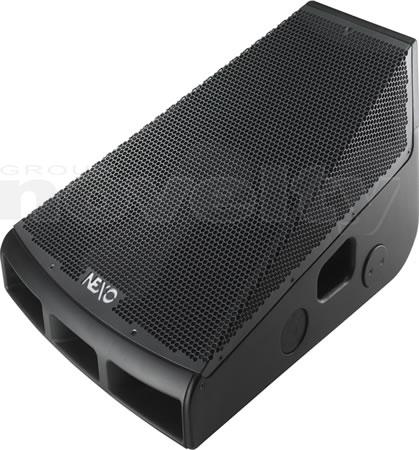

NEXO 45N12

Descriptions détaillées

45N-12 PRODUCT FEATURES

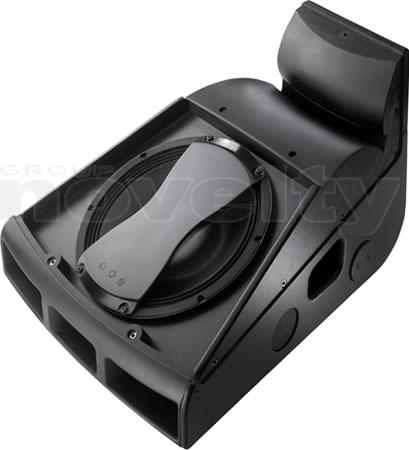

Components

• LF 1 x 12" (30 cm) high excursion Neodymium 8Ω driver.
• HF 1 x 3" voice coil, 1.4" throat Neodymium 16Ω compression driver on a 22.5° hyperboloid
• reflective wavesource.

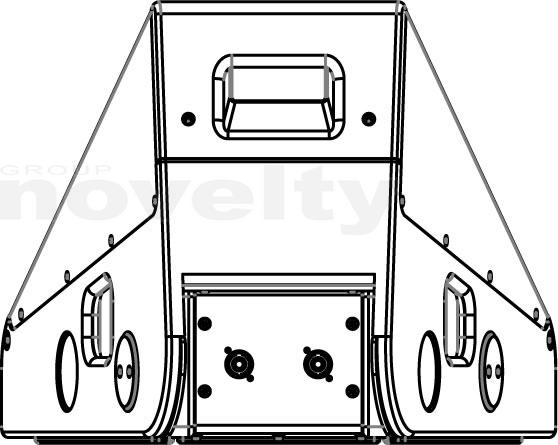

Connectors

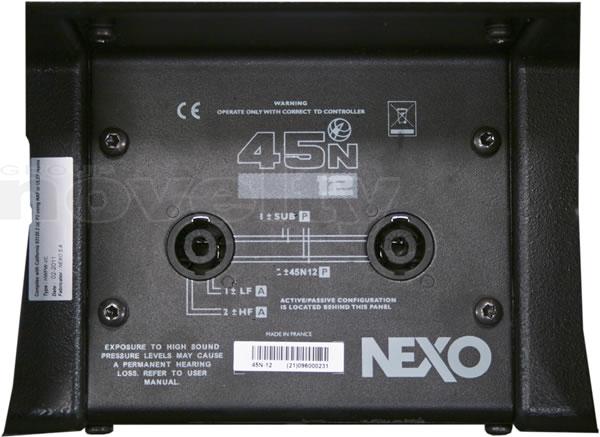

• 2 x NL4MP Speakon 4 pole.

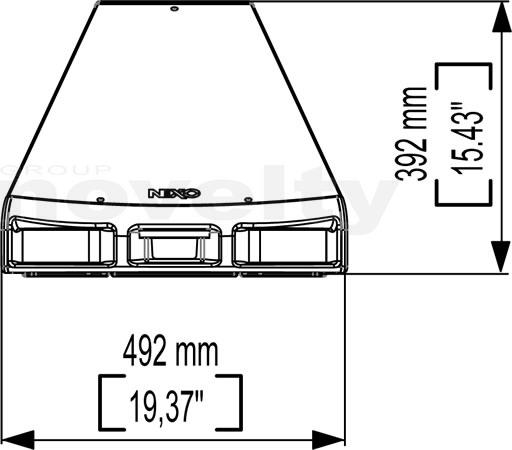

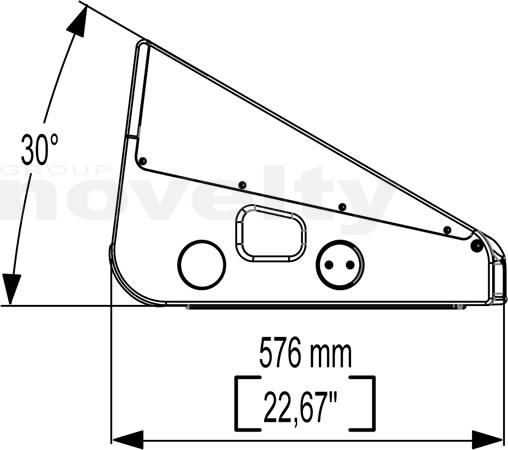

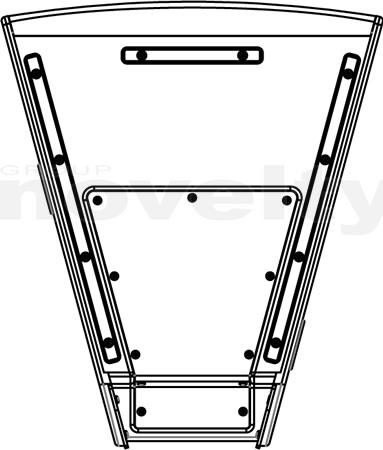

Construction

• Main structure: Baltic Birch Ply finished with structured black coating.
• Rear lower and bottom section: Steel with dark grey coating.
• Front vents and rear upper section: Injected polyurethane front vents, black coating.

Fittings

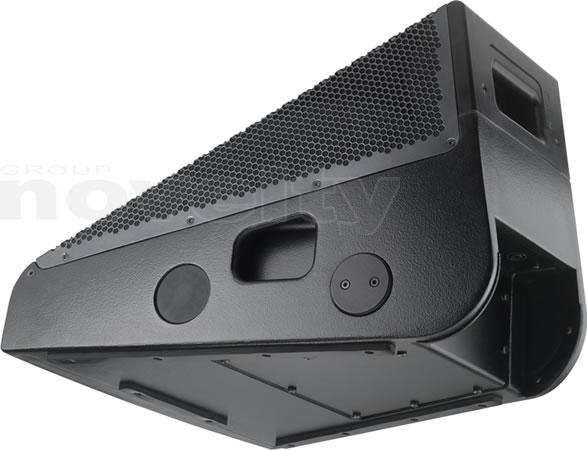

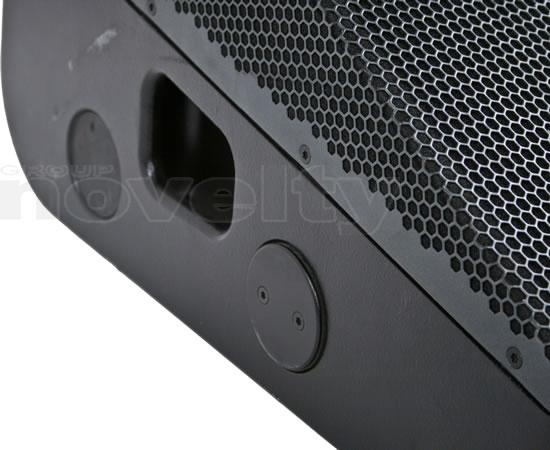

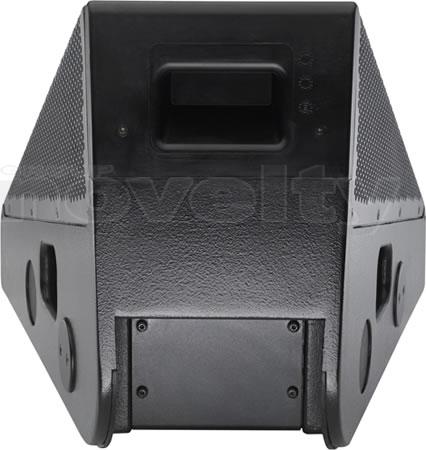

• 4 handles (2 side metal recessed, 2 front and rear moulded).

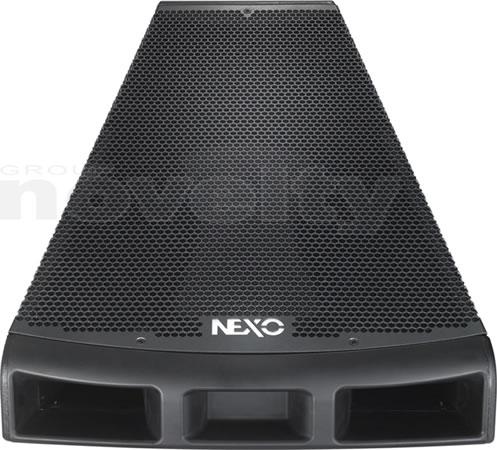

Front Finish

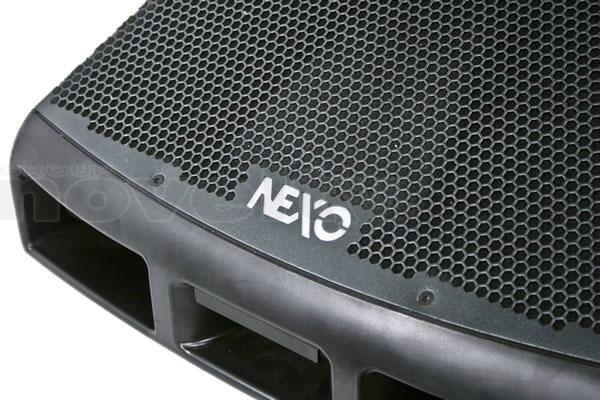

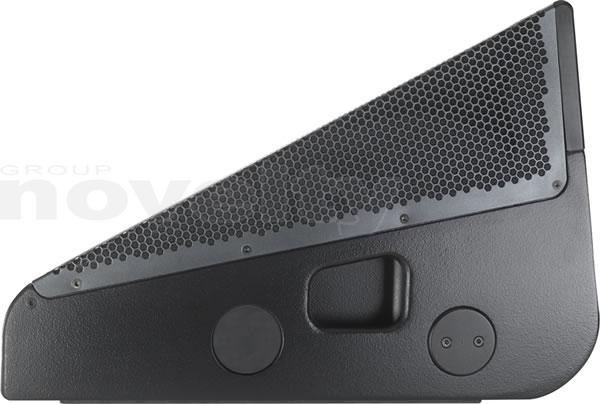

• Perforated dark grey metal grille.

Locking Elements

• Integrated magnets for mechanical locking.

SYSTEM SPECIFICATIONS 45N-12 with NX TD Controller

Frequency Response [a]

• 55Hz - 19kHz ±3dB.

Usable Range @-6dB [a]

• 50Hz - 20kHz.

Sensitivity 1W @ 1m [b]

• 106dB SPL Nominal / 104dB SPL Wideband.

Nominal Peak SPL @ 1m [b]

• 1 unit: 137 to 140dB Peak / 2 units: 140 to 143dB Peak.

HF Dispersion [c]

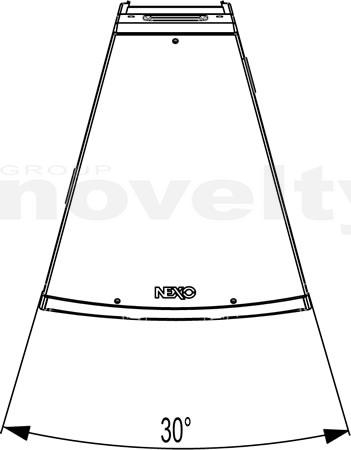

• 30° Horizontal - Scalable 30° steps when arrayed.
• 22.5° Diagonal (Coupling Plane) - Scalable 22.5° steps when arrayed.
• 60° Vertical (Asymmetrical -45° / +15°).

Crossover Frequencies

• LF-HF: 1kHz Active or Passive (internally configurable).

Nominal Impedance

• Active LF 8Ω, HF 16Ω. Passive 8Ω.

Recommended Amplifiers

• Active LF 1000 to 1500 W 8Ω / HF 250 to 500 W 16Ω. Passive 1200 to 2000 W 8Ω.

SYSTEM OPERATIONS

Electronic Controller

• The NEXO TDcontroller’s presets are precisely matched to the 45N Series cabinets and include
• sophisticated protection. Using 45N Series cabinets without a properly connected NEXO TDcontroller
• will result in poor sound quality and can damage components.

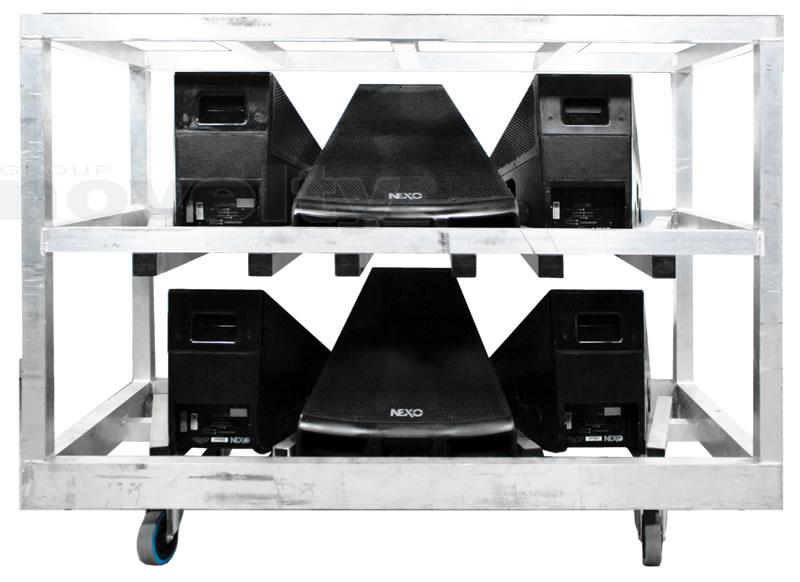

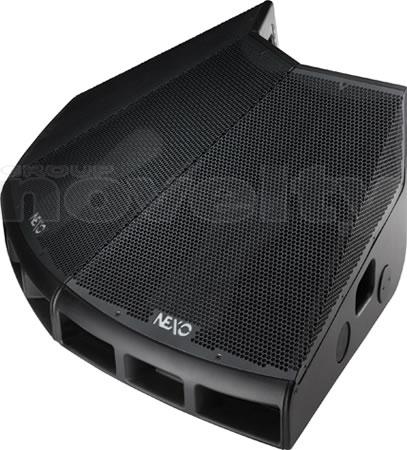

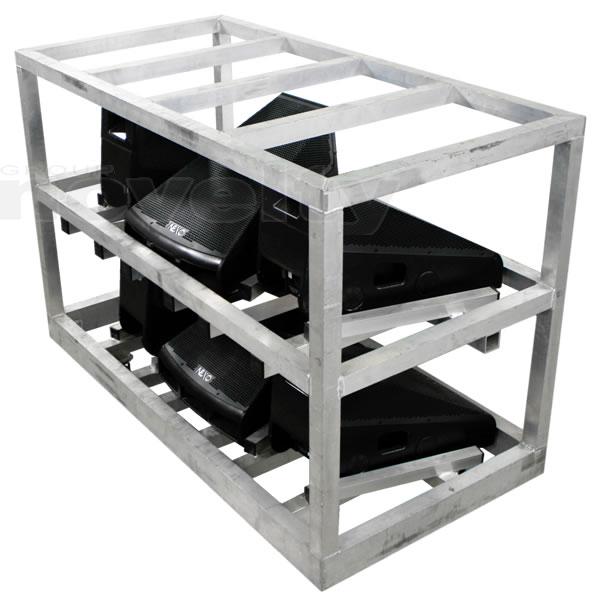

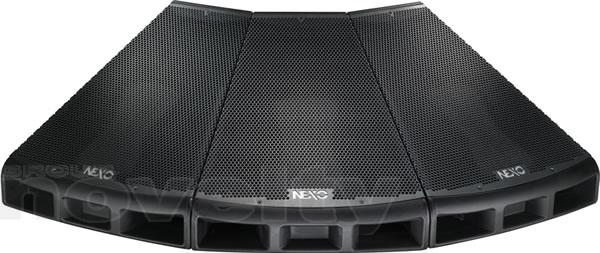

Dispersion configuration

• Internally mounted magnets allow 45N-12 inter-cabinet locking for coverage / SPL scalability.

Sub-bass

• LS600 extends system low frequency response down to 38 Hz.

Speaker Cabling

• Active: 1-/1+:LF; 2-/2+: HF.
• Passive: 1-/1+: Not Connected; 2-/2+:LF + HF.

[a] Response curves & data : Half-Space Far Field for the 45N-12 + NXTD.

[b] Sensitivity & Peak SPL data : these will depend on spectral distribution and crest factor of program material. Measured with band limited Pink Noise.

Nominal refers to Voice Decade (300Hz - 3kHz), Wideband to the specified ±3dB range. Data are for speaker + processor + recommended

amplifier combinations. Peak SPL is at clipping of recommended amplifier.

[c] Directivity curves & data : obtained by computer treatment on off axis response curves
