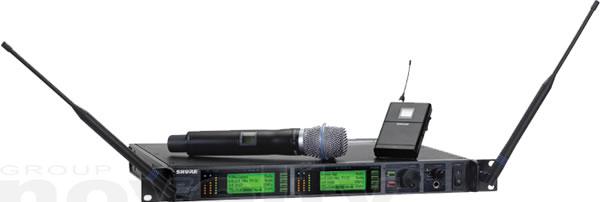

SHURE UR4D/UR2 x1

Système UHF livré avec 1 émetteur main (SM58, Beta58, Beta87A ou KSM9BK), récepteur 2400 fréquences

Descriptions détaillées

DESCRIPTION

The UHF-R® is a professional, wireless technology engineered for the
most demanding touring environments and installations. UHF-R®
wireless systems offer unprecedented flexibility and versatility. Using
multiple frequency bands, over 108 compatible systems can be used
simultaneously. Individual frequency bands deliver up to 60 compatible
systems per band. The UHF-R also includes infrared synchronization
that allows you to configure transmitter settings from the receiver. With
multiple system operation and interchangeable components, UHF-R
systems also offer a choice of Single or Dual Channel Diversity
Receivers.

SYSTEM FEATURE

Shure UHF-R® Wireless Systems offer many exceptional features,including:

Auto Frequency Selection/Scan

Locates a clear channel instantly

Auto Transmitter Sync

Infrared (IR) sync automatically synchronizes the transmitter and receiver

Networking

Each receiver has an RJ-45 port on the back that lets you connect to
an Ethernet network. Networking receivers provides the following benefits:

Makes channel setup faster and easier
Allows you to monitor and control multiple receivers using the Shure Wireless Workbench PC Software

Shure’s Wireless Workbench Software

Key benefits of current Wireless Workbench software include:

Fast network setup of large groups of wireless systems:
Scans current RF environment.
Plots RF history, using an individual transmitter to identify potential areas of weak signals and dropouts.
Remote monitoring and control of multiple wireless systems.
Wireless Workbench provides faster setup and more complete control.
Automatic Frequency Selection Wizard: Will scan and select open frequencies, applying them to all Shure UHF-R receivers in network (and ultimately to connected networks of current UHF series receivers as well).
Comprehensive Infra-Red (IR) Auto Sync/Automatic Transmitter Setup: PC control of transmitter sync with corresponding receiver. Syncs frequency, lockouts, power setting,
custom groups.
Frequency Compatibility Calculator Wizard: By scanning the RF environment and then considering all networked hardware models, Wireless Workbench recommends frequencies for all specified wireless systems (including PSM systems, and competitive product). While this feature has a proprietary slant, a generic hardware “template” will be available for those users who insist on networking with non-Shure products)
The Band Limiting feature allows manufacturer or service center to set Network frequency band parameters, to align with any country/regional RF usage guidelines that might conflict with the available bandwidth.
Custom Frequency Group Creation allows customization of frequency groups to be used in specific locations. May require advanced wireless aptitude, or assistance from Shure’s Applications departments.

Shure’s patented Audio Reference Companding

Delivers a crystal clear audio transmission, superior to conventional wireless technology

UR4S & UR4D DIVERSITY RECEIVER FEATURES:

2,400 Selectable frequencies across 60 MHz bandwidth
Track Tuning Filtering Technology
Up to 40 preset compatible systems/band (108 with multiple bands).
Network Automatic Frequency Selection
Automatic Transmitter sync (including custom Group Upload)
Flash memory to store six 60-channel custom frequency groups
Shure’s Patented Audio Reference Companding
Multi-function bit-mapped backlit LCD
Built-in USB & Ethernet network Control/Monitoring
AMX/Crestron Compatible
Remoteable 1/2 wave antenna
Temperature-activated fan ensures top performance in high temperature environments. Clean fan screen as needed to remove dust.
MARCAD® diversity

HANDHELD AND BODYPACK TRANSMITTERS FEATURES

Switchable RF Power (10/50 & 10/100 mW), country dependent
Low profile, compact bodypack design
Frequency and Power Lockout
Bit-mapped Backlit LCD
2 AA Batteries - Up to 9.5 hours continuous use (low power)
Automatic Transmitter Setup
All-metal die-cast construction
Light-weight magnesium bodypack
Flexible bodypack antenna
Reversible Belt Clip

Logiciel de management des systèmes HF SHURE (U4D, UR4D)

Wireless Workbench v5.0, version Windows(fichier .EXE de 19 Mo)

Wireless Workbench v5.0, version Mac OS X(fichier .DMG de 50 Mo)

Informations

Référence : UR4D/UR2 x1
Télécharger nos catalogues PDF

Propriétés techniques

Dimensions unitaires : 4,4 x 48,3 x 36,6 cm
Poids unitaire : 5 kg

Documents à télécharger

Fiche technique : UR4D
Manuel technique : UR4D
Fichiers : Brochure commercial UR4D

Catalogue SHURE

Matériels associés

SHURE SM58-HF
Emetteur microphone main UR2 avec capsule SM58. Cardioïde.
SHURE Beta58-HF
Emetteur microphone main UR2 avec capsule Beta58. Supercardioïde.
SHURE Beta87A-HF
Emetteur microphone main UR2 avec capsule Beta87A. Supercardioïde.
SHURE KSM9BK-HF
Emetteur microphone main UR2 avec capsule KSM9 noire. Cardioïde et supercardioïde.
SHURE UA870WB
Antenne directive amplifiée large bande (470 à 900MHz). Gain antenne 7dB. Gain ampli +3dB / +10dB commutable
SHURE UA874E
Antenne directive amplifiée large bande (470 à 698MHz). Gain antenne 7,5dBi. Gain ampli -6dB / 0dB / +6dB / +12dB commutable
SHURE SM58-HF noir
Emetteur microphone main UR2 avec capsule SM58 noire. Cardioïde.
SHURE Beta58-HF noir
Emetteur microphone main UR2 avec capsule Beta58 noire. Cardioïde.
SHURE UA845E
Distributeur d'antennes actif, large bande, pour 5 récepteurs UR4S ou UR4D.
Bande passante : 500 à 900 mHz
