Novastar MCTRL660

Descriptions détaillées

MCTRL660 is the latest independent master control by NovaStar?It supports screen configuration at any time without a computer. NovaStar LED Display Sending Unit MCTRL660 has the following characteristics:

• Adopts an innovative architecture to implement smart configuration;
• the screen debugging can be completed within 30 seconds;
• Adopts the Nova G4 engine; the screen is stable and flicker free without scanning lines;
• the images are exquisite and have a good sense of depth;
• Supports Nova's new-generation point-by-point correction technology; the correction is fast and efficient;
• Can implement white balance calibration and color gamut mapping based on different features of LEDs used by screens to ensure reproduction of true colors.
• Is the only control system supporting the input of 12-bit high-definition multimedia interface (HDMI)and high-bandwidth digital content protection(HDCP) in China;
• Supports screen configuration at any time without a computer;
• Supports manual adjustment of the screen brightness, which is convenient andefficient;
• HDMI/DVI input;
• HDMI/external audio input;
• 12bit/10bit/8bit HD video source;
• Resolution supported:2048×1152?1920×1200?2560×960;
• Resolution supported:1440×900; (12bit/10bit)
• Capacity: 2.3 million pixels.
• Supply voltage: 220V
• Control method: USB interface.
• Video interface: HDMI/DVI
• Audio interface: HDMI/3.5mm

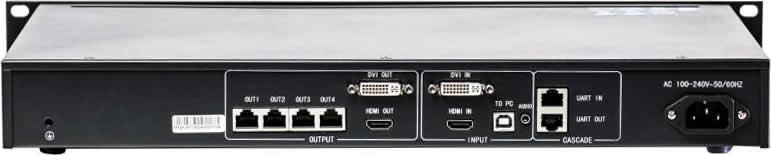

• Output interface: Four internet accesses.
• Bit depth of video resource: 8/10/12bit
• 1 light sensor interface;
• Cascading supported;
• 18bit gray scale processing and presentation;
• Video format:RGB,YCrCb4:2:2,YCrCb4:4:4;
