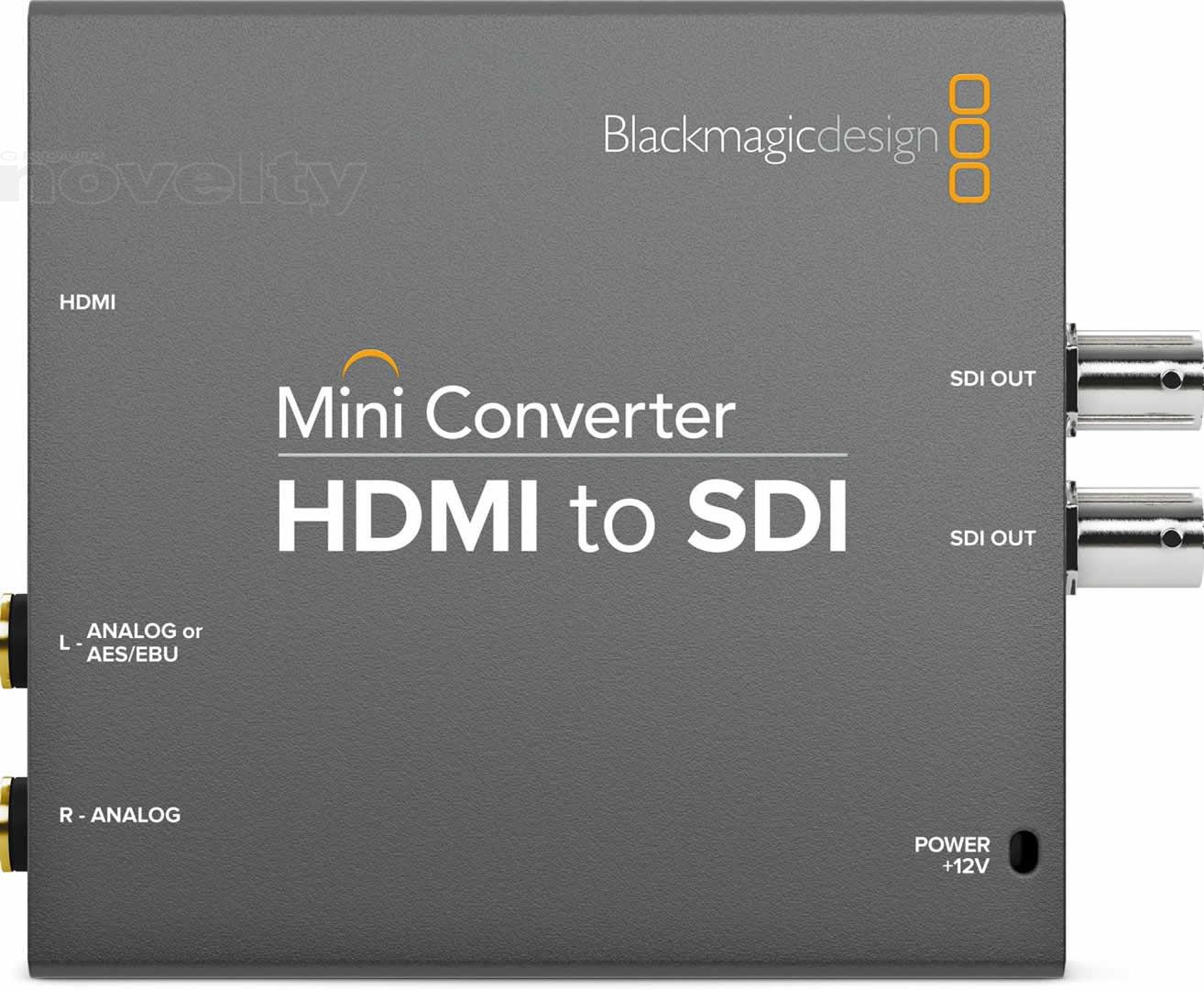

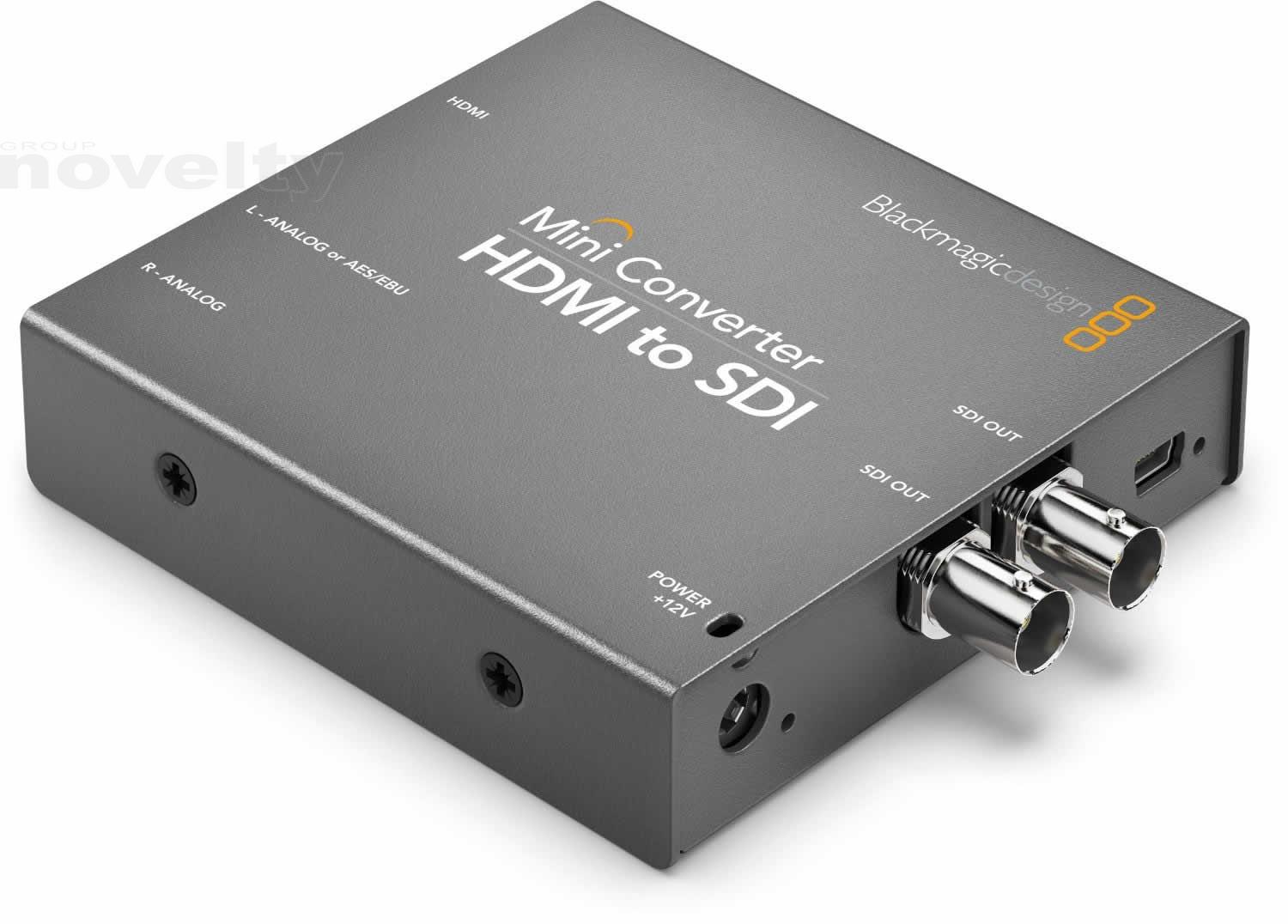

BlackMagicDesign MiniConverter HDMI to SDI

Descriptions détaillées

Description

The ideal solution for converting HDMI to SDI in all SD and HD formats up to 1080p60! Audio can be embedded from HDMI, balanced analog or AES/EBU inputs. Mini Converter HDMI to SDI is ideal for adding an SD or HD-SDI output to computers and cameras that have HDMI connections, and for when you don’t need the cost of the Ultra HD model!

Connections

• SDI Video Output : Automatically matches the SD, HD and 3G-SDI HDMI video input.
• Analog Audio : 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
• AES/EBU Digital Audio : 2 channels of professional balanced digital with standard 1/4 inch jack connections.
• HDMI : HDMI type A in
• Multi Rate Support : Auto detection of SD, HD or 3G-SDI.
• Updates and Configuration : USB
• Reclocking : Yes

Standards

• SD Format Support : 525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL.
• HD Format Support : 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
• SDI Compliance : SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
• SDI Video Rates : SDI video connections are switchable between SD, HD, 3G-SDI
• SDI Video Sampling : 4:2:2
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision : 4:2:2
• SDI Color Space : YUV
• SDI Auto Switching : Automatically detects SD, HD or 3G-SDI.
• HDMI Format Support : 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.
• HDMI Color Space : YUV and RGB
• HDMI Color Precision : 4:2:2 and 4:4:4
• Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Format Conversion

• SD down conversion

Software

• Software Control : Mac OS X™ and Windows™ software upgrade via USB.
• Internal Software Upgrade : Via included updater application.

Operating Systems

• Mac OS X 10.10 Yosemite
• Mac OS X 10.11 El Capitan or later.
• Windows 8.1 or Windows 10.

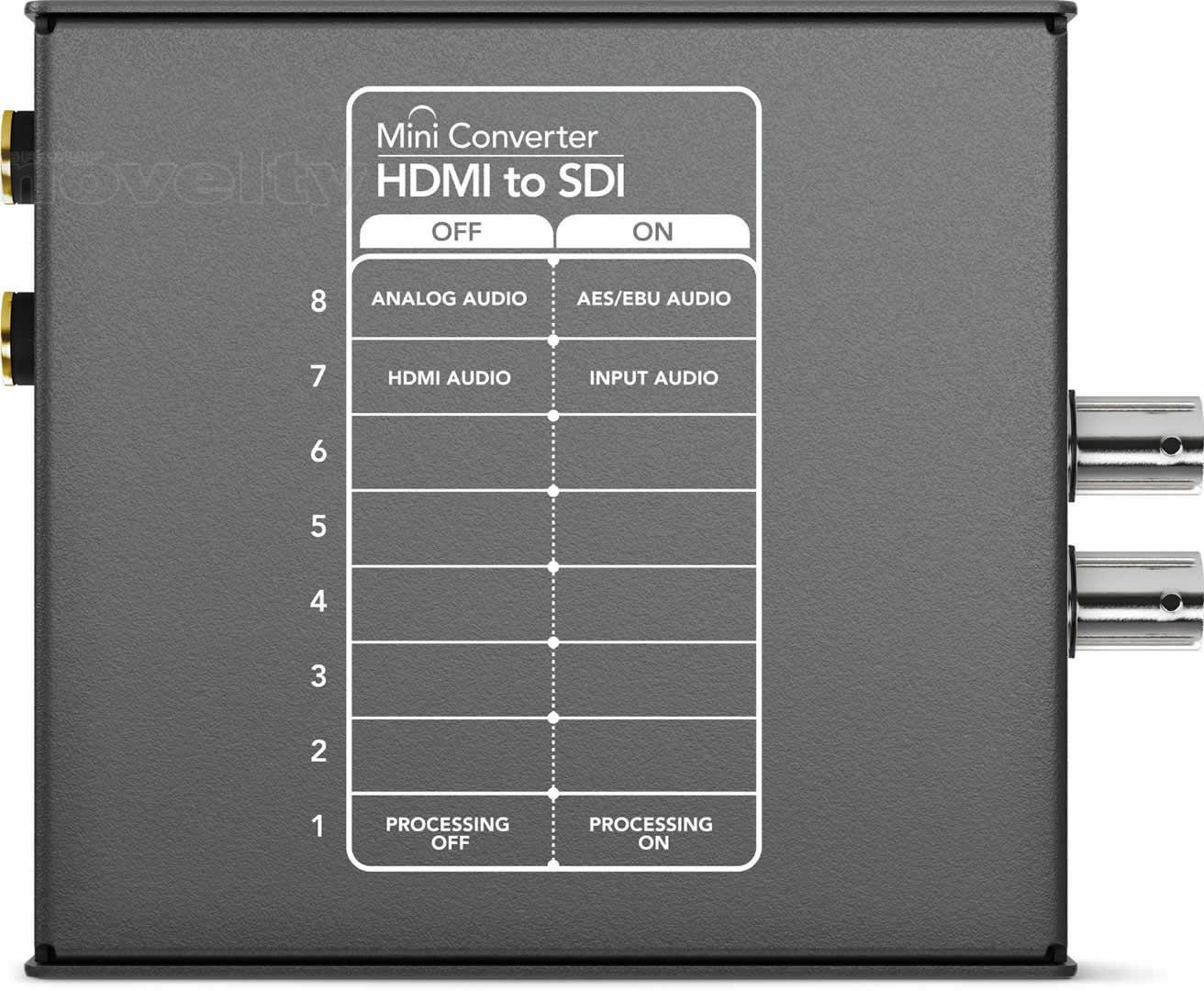

Settings Control

• Mini Switches or USB software.

Power Requirements

• Power Supply : +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• Power Consumption : 4.44 Watts
• Operational Voltage Range : 12 - 31V DC

Environmental Specifications

• Operating temperature : 0° to 40° C (32° to 104° F)
• Storage temperature : -20° to 45° C (-4° to 113° F)
• Relative Humidity : 0% to 90% non-condensing
