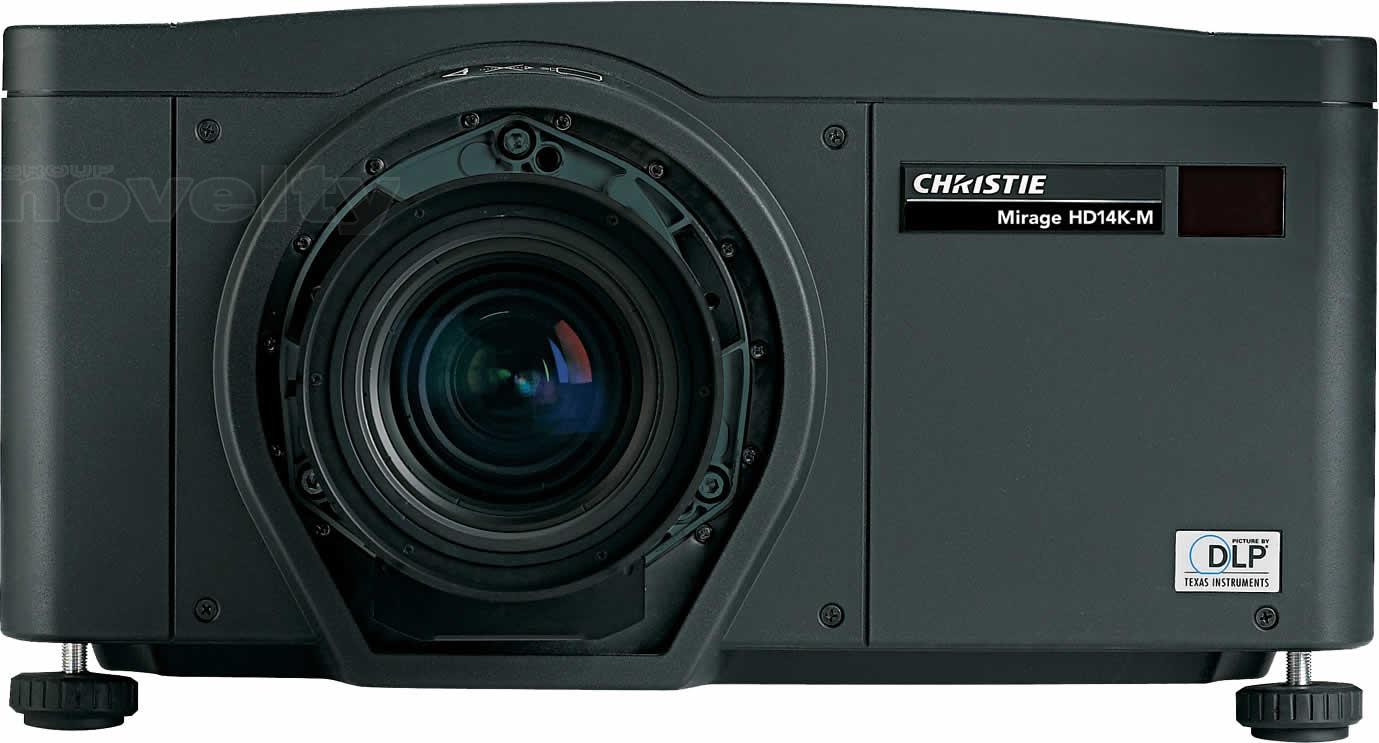

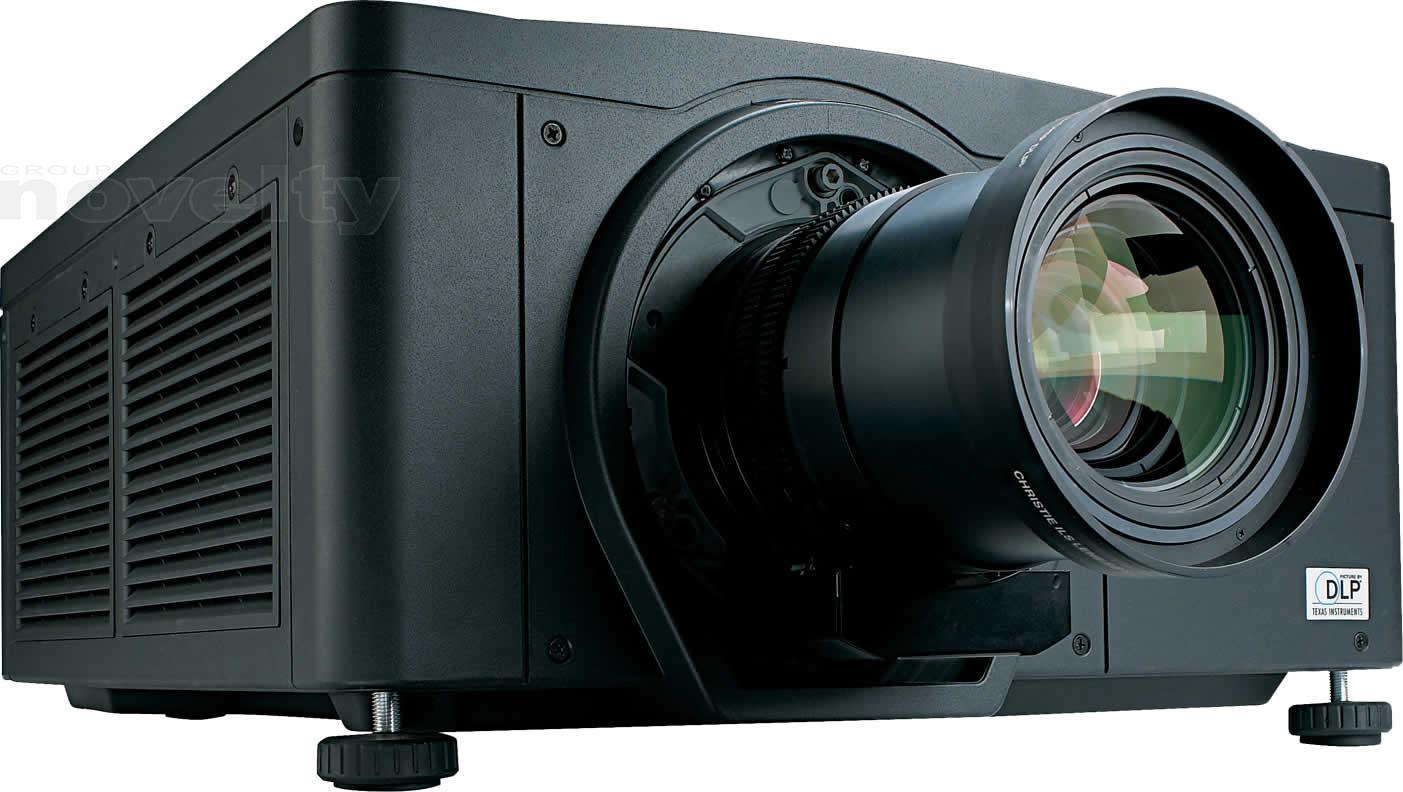

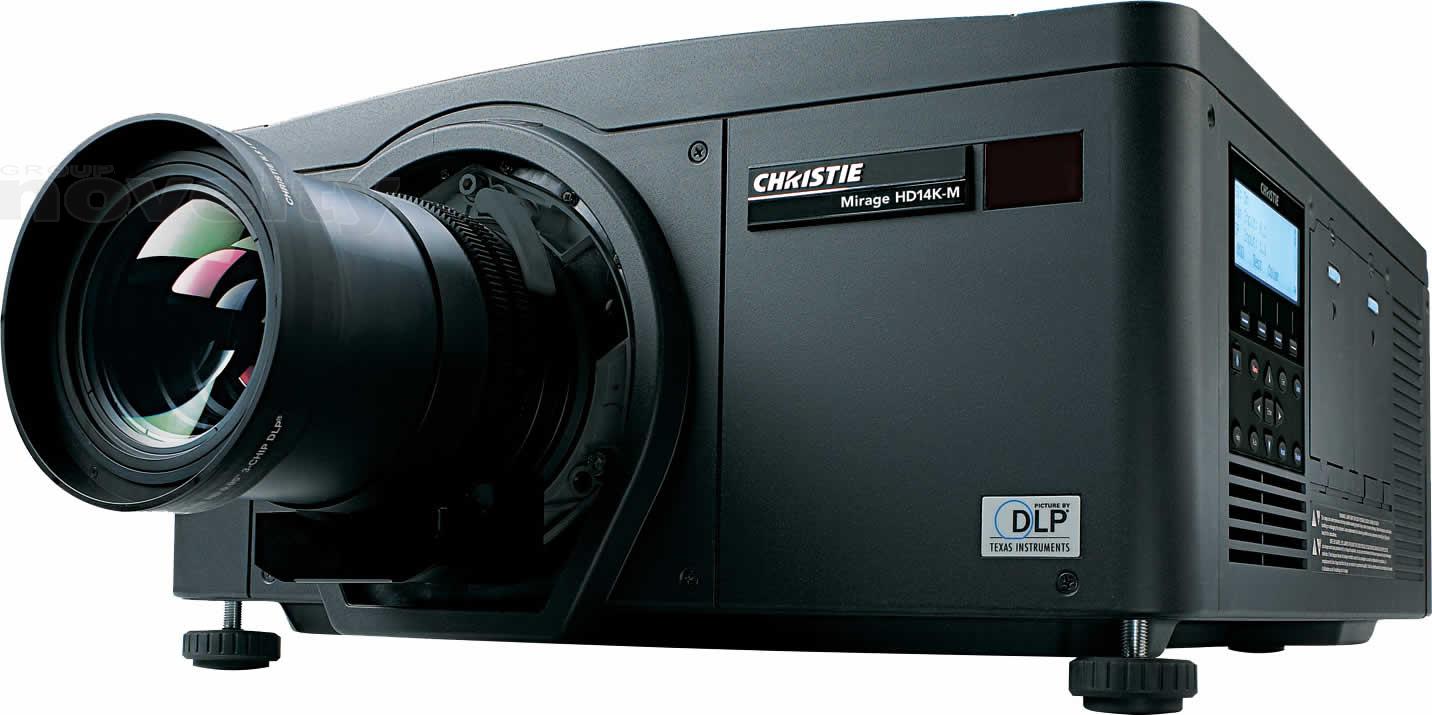

CHRISTIE HD14K-M

Descriptions détaillées

The Christie® M Series projector platform provides the high-performance and feature-rich standards expected in all Christie products. The most compact in its class, this projector platform has embedded warping, blending and color matching capabilities that give you even more installation flexibility.

The Christie HD14K-M, offers high efficiency and low cost of ownership. It draws a maximum power of 1500W (at 110V) giving you full brightness with two lamps instead of four.

Features



• Native HD resolution (1920 x 1080)
• 13,500 center lumens
• Variable contrast ratio of 2500:1 (full on/ off) / 650:1 ANSI for crisp, detailed images
• At maximum brightness the projector draws a maximum power of 1500W at 110V
• Smallest chassis in its class
• Dual mercury lamps (450W)
• Comprehensive Color Adjustment (CCA™)
• Embedded Christie Twist™ image warping and edge-blending
• Dust-sealed engine, filter-free design
• Motorized yellow notch filter
• Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
• Multiwindowing and screen processing (up to a 3x3 array)
• 3D capable model available in the Mirage Series
• 3D upgradable
• AutoDesk® Revit® model
• 24/7 operation



Christie’s 3DLP projectors are 2D and 3D capable. The Christie HD14K-M is available as a 3D display solution or it can be upgraded from its existing 2D display technology to include 3D capabilities. Christie is the first to offer an upgrade path for its 3 DLP projectors with the Mirage advanced 3D functionality.

All this, combined with a 3-year warranty and our industry-leading service and support, means the  M Series gives you high performance and peace of mind.

Specfications





• Image
  • Dual lamp: 13,500 center (12,000 ANSI, 13,500 ISO) lumens
  • Single lamp: 6,750 center (6,000 ANSI, 6,750 ISO) lumens
• Contrast
  • 2,500:1 (full on, full off)
  • 650:1 ANSI (typical)
• Display type
  • 0.95" 3DLP­
• Resolution
  • HD (1920 x 1080)
• Lamp type
  • Dual 450W NSH
• Lamp life
  • High power: 1,750 hrs @ 450W
  • Low power: 2 ,000 hrs @ 360W
• Standard inputs
  • Twin DisplayPort input card
  • Dual-link DVI

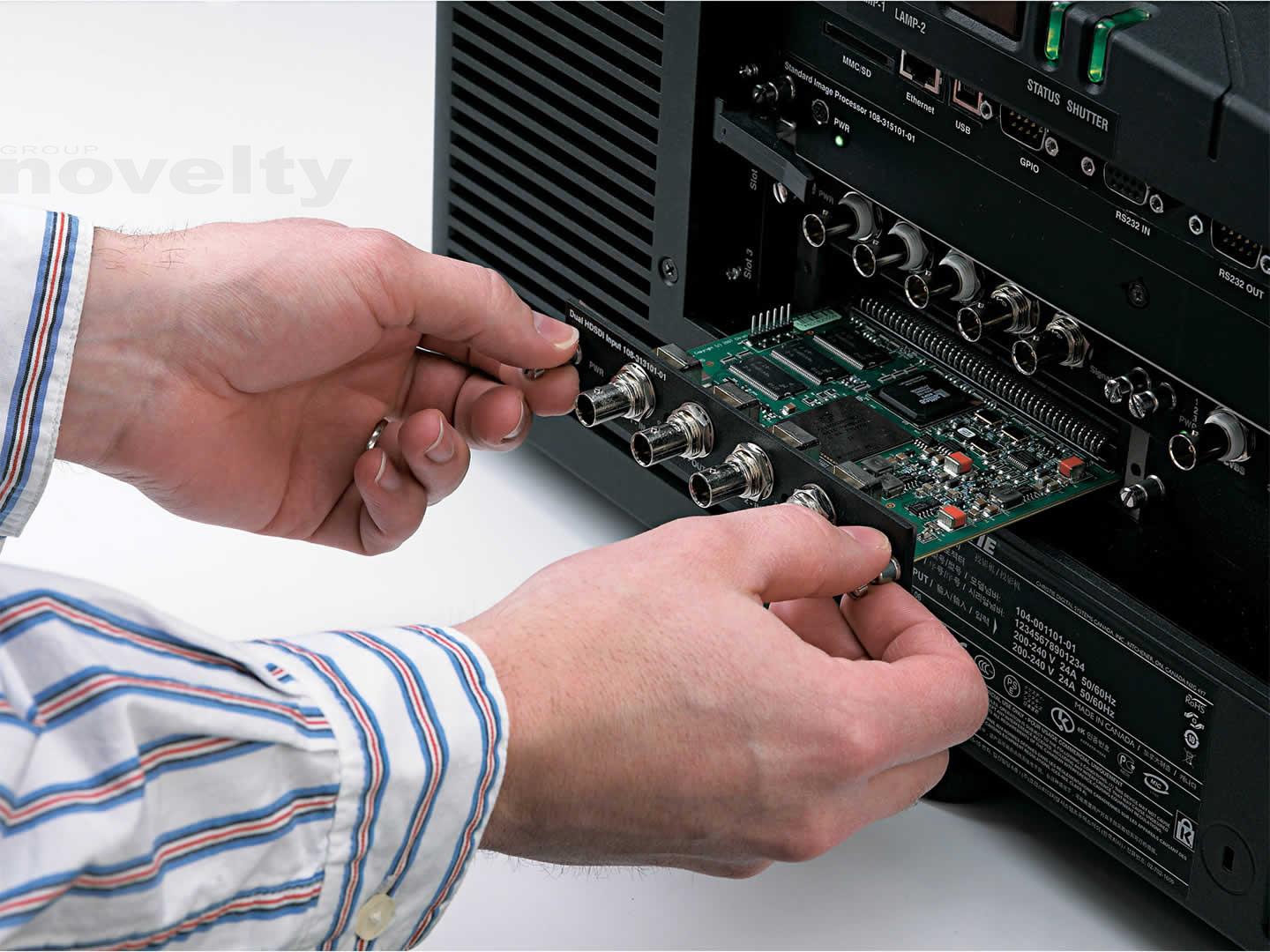

• Optional inputs
  • Analog (5 BNC)
  • Dual-link DVI
  • Dual 3G SD/HD-SDI
  • Video decoder
  • Twin HDMI
• Input signals
  • HDTV formats VGA through to QXGA (2048 x 1536)
  • Accepts all current HDTV/DTV formats
  • Multistandard video decoder
  • Horizontal and vertical scaling, all inputs
• Pixel clock
  • 165 MHz
• Scan rates
  • Horizontal: 15 to 120 kHz
  • Vertical: 23.97 to 150 Hz
• Inputs, controls and networking
  • RS232 in/out
  • RS422 in
  • Ethernet (10/100)
  • USB device
  • GPIO (RS232 9-pin male connector)
  • Built-in backlit LCD keypad
  • Remote control (with optional wired XLR connection)
• Optical system
  • Dust-sealed, 3-chip, DMD light engine
  • Motorized horizontal and vertical lens offset
  • Scheimpflug (tilt) adjustment
  • Built-in light shutter
  • Tool-free lens insertion system
• Fixed lenses
  • ILS lens 0.73:1 SX+/0.67:1 HD*
  • ILS lens 1.2:1 SX+/1.1:1HD
• Zoom lenses
  • ILS lens 1.25-1.6:1 SX+/1.16-1.49:1 HD**
  • ILS lens 1.5-2.0:1 SX+/1.4-1.8:1 HD
  • ILS lens 2.0-2.8:1 SX+/1.8-2.6:1 HD
  • ILS lens 2.8-4.5:1 SX+/2.6-4.1:1 HD
  • ILS lens 4.5-7.3:1 SX+/4.1-6.9:1 HD
  • ILS lens 7.5-11.2:1 SX+/6.9-10.4:1 HD
• Offsets
  • +/- 120% Vertical
  • +/- 42% Horizontal
  • (* ±35%V / ±12%H)
  • (** ±102%V / ±40%H)
• Standard accessories
  • IR remote
  • Line cord
• Optional accessories
  • Coarse dust filter
  • Fog juice filter
  • Ceiling mount
  • Ceiling mount extension
  • ILS lens adapter kit
  • Stacking frame
  • Christie AutoStack™
  • Christie AutoStack™ Premium
  • DMX512 interface card
• Enhanced feature sets
  • LiteLOC™
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist image warping and edge-blending
  • Intelligent Lens System (ILS) for zoom, focus, horizontal and vertical offset for all lenses
  • Auto setup
  • Digital keystone correction
  • Menus in five languages
  • 99 channel memories
  • Multiwindowing and processing (up to a 3 x 3 array)
  • Black-level blending
  • 24/7 operation
  • 3D upgradable
• Operating voltage
  • 110-240 VAC 50/60 Hz
• Operating current
  • 15A @ 100 VAC
• Power
  • 1500W
• Dissipation
  • 5118 BTU/hr
• Operating environment
  • Temp: 40 to 104° F (5 to 40° C)
  • Humidity: 20-80% non-condensing
• Regulatory approvals
  • Directives (EC) 2002/95/EC (RoHS); 2002/96/EC (WEEE); Regulation (EC) No. 1907/2006 (REACH)
  • CAN/CSA C22.2 No. 60950-1
  • UL 60950-1
  • IEC 60950-1
  • FCC, Part 15, Subpart B, Class A
  • EN55022/CISPR22 Class A
  • EN55024 / CISPR24
  • Certifications marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), GoST-R (Russia), KC (Korea), PSE (Japan), C-Tick (Australia & New Zealand), South Africa
