LITEC RL76A100
Rectangular section High Load aluminium truss with 76x52 cm, lenght 100cm
Full description
RL76A ANTI-TORSION

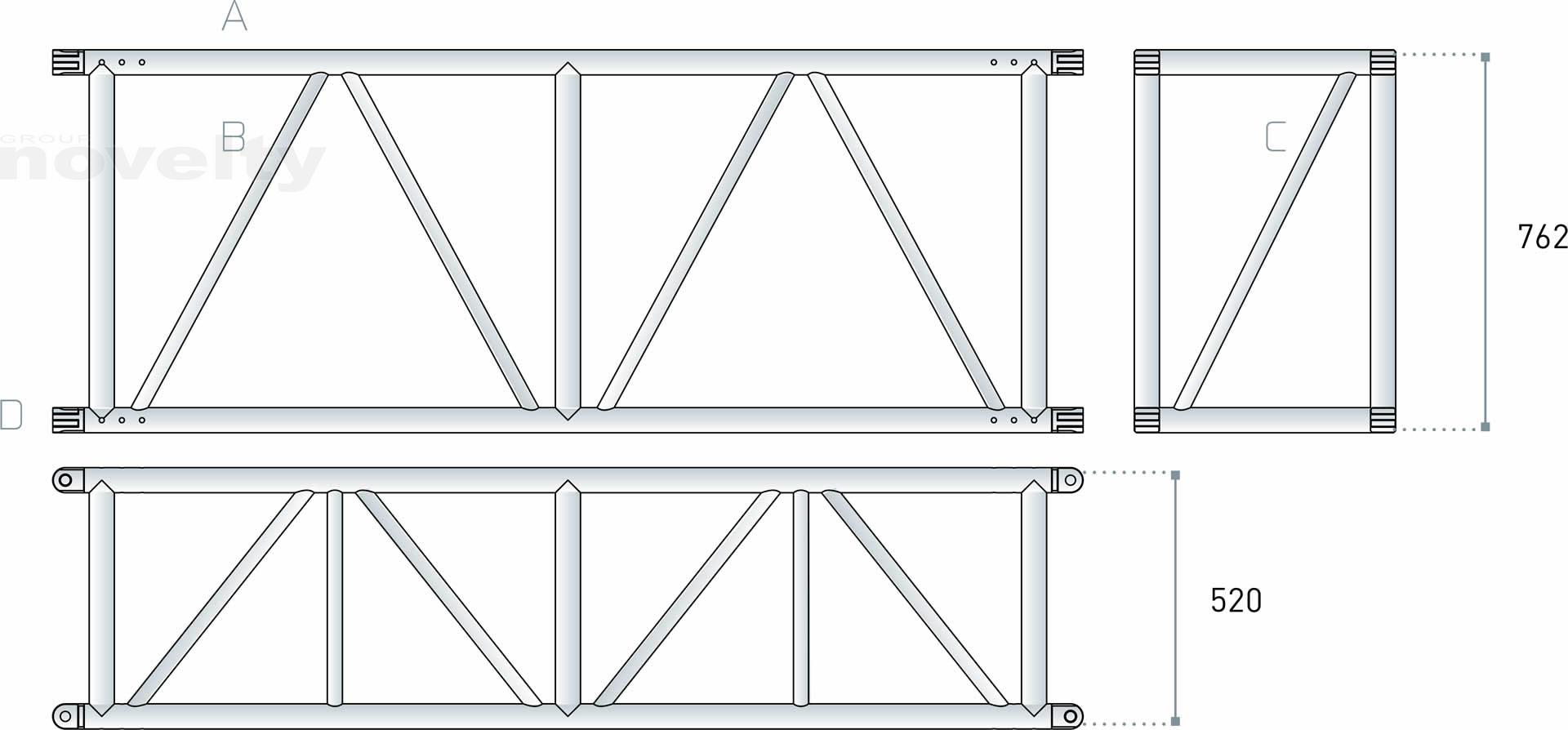

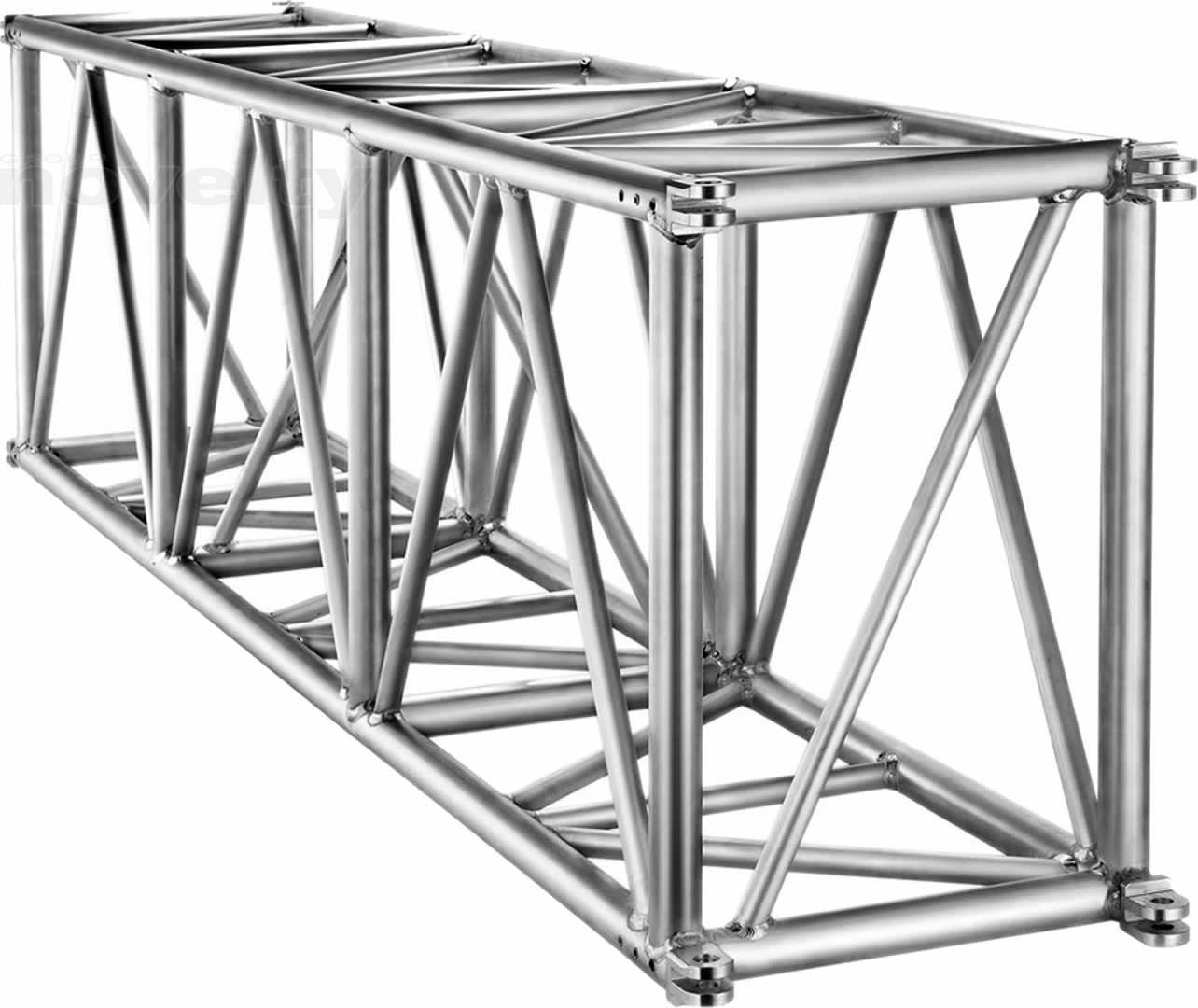

Rectangular section High Load aluminium truss with 76x52 cm long sides. It is diagonalized on all faces and is provided with steel fork connections. It ensures high load capacity on medium-long spans thanks to the design of its main components.

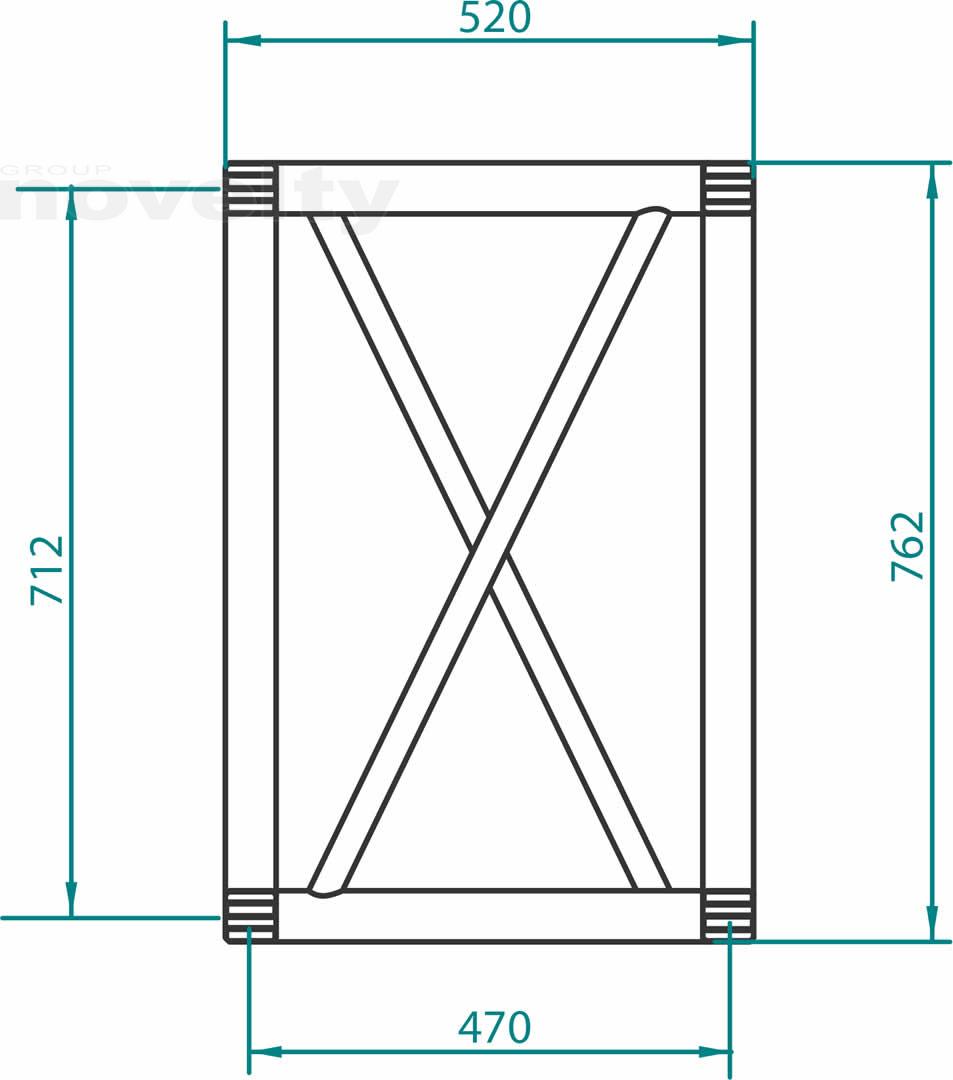

- External dimensions (height x width) : 520 mm x 762 mm
- Distance between axis : 470 mm x 712 mm
- Lenghtways tubes : Extruded aluminium EN AW 6082 T6 - Ø50x4
- Crossways tubes : Extruded aluminium EN AW 6082 T6 - Ø30x3 mm
- Connecting fork : Steel 11SMnPb37
- Welding process : -141 / ISO 4063
Informations
- Référence : RL76A100
- Codart : RL76 100A
- Télécharger nos catalogues PDF
Documents to download
Technical Sheet : RL76A - Certificates on accordance : Tüv
- Certificates on accordance : Declaration Of Performance
