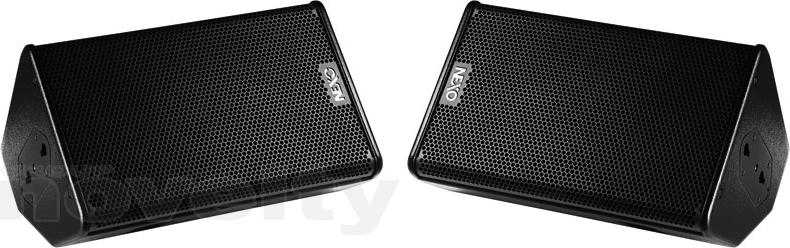

NEXO PS10 R2
Enceinte 500W 98 dB SPL Nominal / 8 Ohms, 2 voies passives
Descriptions détaillées
Vue objet Quickime VR® :
- Cliquez-glissez votre souris sur l'objet pour le visualiser en 3D sous 360°
LOUDSPEAKER PRODUCT FEATURES

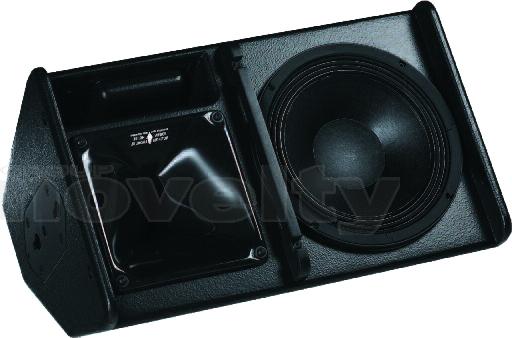

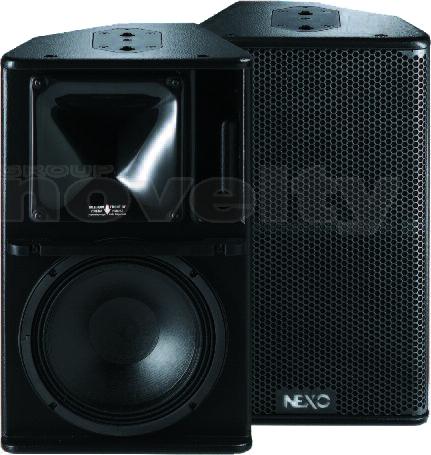

- Components 1 x 10" (25cm) Shielded Neodymium 8Ω driver.
- HF 1 x 1" throat driver + Low Distortion Constant Directivity Asymmetrical Dispersion Horn.

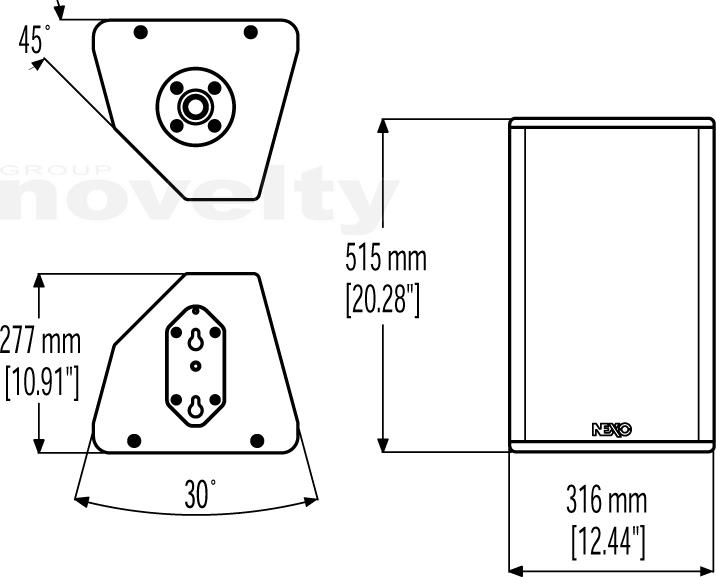

- Height x Width x Depth 515mm x 316mm x 277 mm (20.28" x 12.44" x 10.91").
- Weight 14 kg (31 lbs).
- Connectors 2 x NL4MP Speakon 4 pole.
- Construction Baltic Birch Ply finished with structured black coating.
- Fittings 2 Metal recessed pockets.

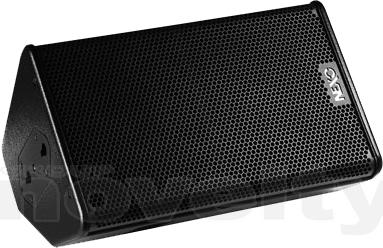

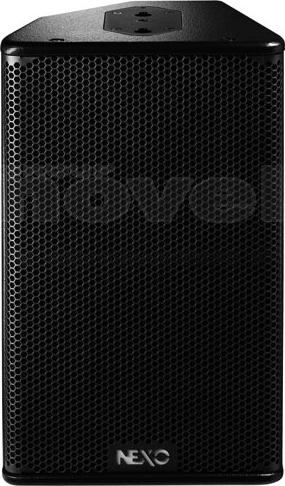

- Front finish Moulded Dark Grey Metal Grill.

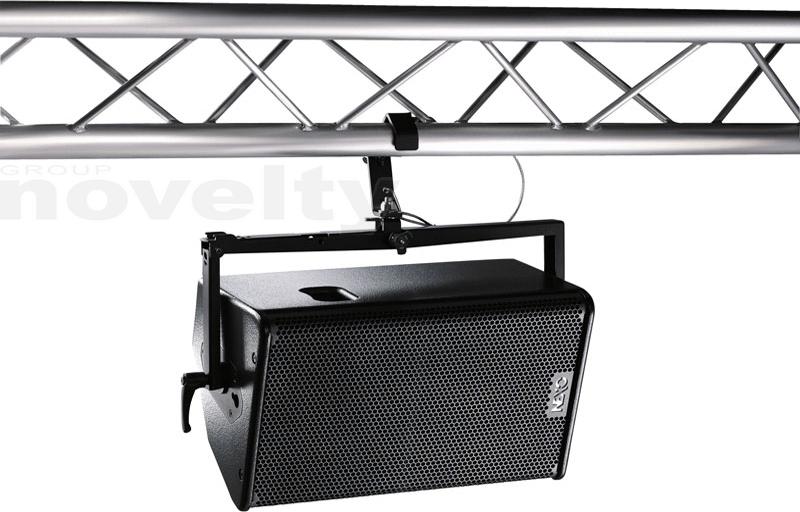

- Flying Points One plate connecting with external accessories.

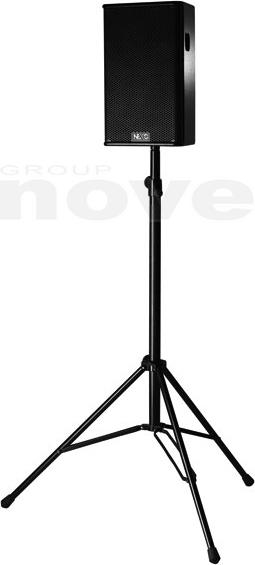

- Stand fittings Built in Steel Stand Fitting, (35mm / 1 3/8").
SYSTEM SPECIFICATIONS PS10-R2 with PS10 TDController-R2
- Frequency Response [a] 65 Hz - 20 kHz ±3dB.
- Usable Range @-6dB [a] 58 Hz - 21 kHz.
- Sensitivity 1W @ 1m [b] 99 dB SPL Nominal – 97 dB SPL Wideband.
- Nominal Peak SPL @ 1m [b] 129 to 132 dB Peak.
- HF Dispersion [c] 50° to 100° Hor. x 55° Vert. Rotatable Horn, 4 positions.
- Directivity Q & DI [c] Q : 16 Nominal DI : 12 dB Nominal.
- ( f > 3 kHz )
- Crossover Frequencies 2 kHz Passive.
- Nominal Impedance 8Ω
- Recommended Amplifiers 500 to 1250 W / 8 Ω.
SYSTEM OPERATIONS
- Electronic Controller The PS10 TDController-R2 is precisely matched to the PS10-R2 & LS600 cabinets and includes sophisticated
- protection systems. Using PS10-R2 & LS600 without a properly connected PS10 TDController-R2 will result in
- poor sound quality and can damage the components.
- Dispersion configuration After dismounting front grill from its fixings, the HF Horn can be rotated in 4 positions for dispersion configuration.

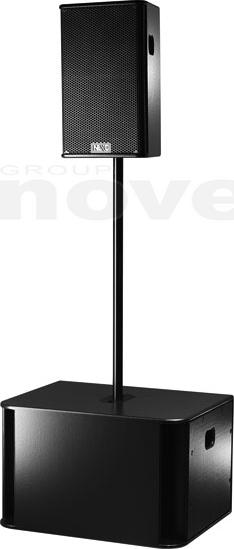

- Sub-bass The PS10-R2 can be used without optional LS600 Sub-Bass. Active two-way operation with the LS600 is
- included in the PS10 TDController-R2. One LS600 matches 2 x PS10-R2, additional LS600 may be used for
- enhanced LF capability.
- Speaker Cables PS10-R2 are wired 2- & 2+ on Speakon connectors, LS600 on 1- & 1+. Loop through Speakons are present
- on both. Single identical cables can thus be used to loop through combinations of up to 2 x PS10-R2 & 1 x
- LS600 in no particular order.
Informations
- Référence : PS10 R2
- Codart : SOLO/PS10R2L
- Télécharger nos catalogues PDF
Propriétés techniques

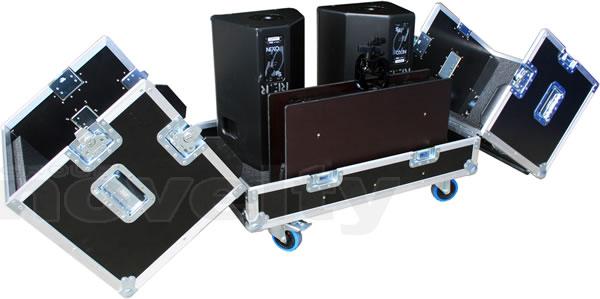

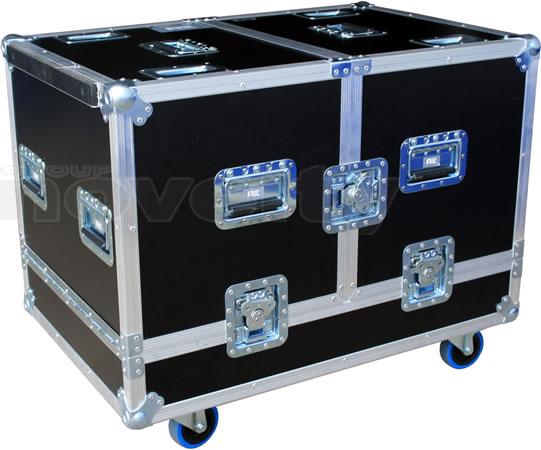

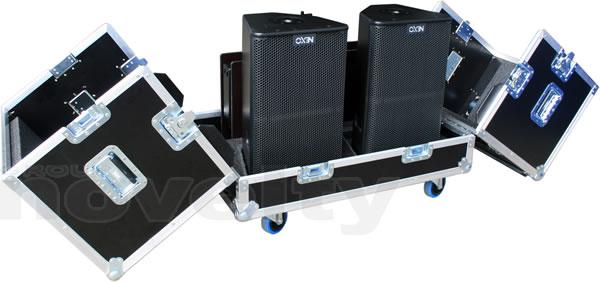

- Dimensions en flight-case (X2) : 60 x 90 x 73 cm
- Dimensions unitaires : 515 x 316 x 277 mm
- Poids en flight-case (X2) : 75 kg
- Poids unitaire : 14 kg
Documents à télécharger
Manuel technique : PS10 R2 - Fiche technique : PS10 R2
- Manuel technique : Brochure série PS R2
