NEXO PS15 R2
Enceinte 1200W 102 dB SPL Nominal / 8 Ohms, 2 voies passives ou actives
Descriptions détaillées
Vue objet Quickime VR® :
- Cliquez-glissez votre souris sur l'objet pour le visualiser en 3D sous 360°
MOST POWERFUL PS-R2 SYSTEM
The PS15-R2 uses a unique cabinet design and rotatable constant directivity asymmetrical dispersion horn to provide both PA and stage monitor performance. The PS15-R2 is extremely light and compact. NEXO's unique Active Full-range Processing enables a 2-way passive 8Ω design to deliver bi-amped performance using just one amplifier channel for less money, space and complexity. For maximum power handling, the PS15-R2 can be also operated in active bi-amped mode.

Like all NEXO products, the PS15-R2 Loudspeaker is designed to work with advanced electronic processors, guaranteeing consistent performance and reliability of the highest standard.
SYSTEM APPLICATIONS
- Near-field portable or installed PA for clubs, A/V, Houses of Worship, Theater, Broadcast, etc.

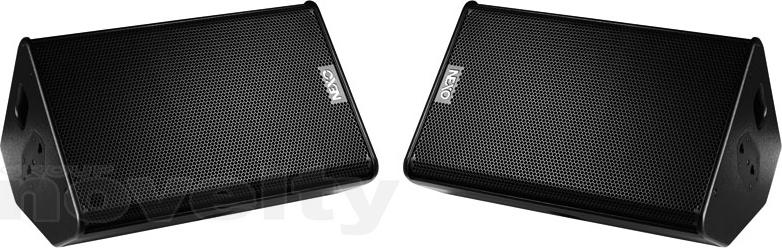

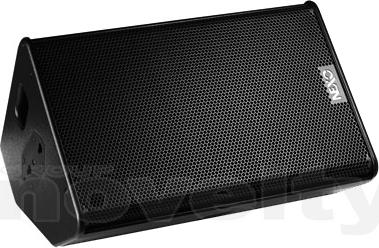

- Exceptional stage monitoring for clubs, A/V, theater, broadcast, etc.
- Fill-in system in conjunction with NEXO Alpha, AlphaE or GEO systems.
LOUDSPEAKER PRODUCT FEATURES
- Components LF 1 x 15" (38 cm) long excursion Neodymium 8Ω driver.
- HF 1 x 2" throat, 3" Titanium diaphragm compression driver + Low Distortion, Constant Directivity
- Asymmetrical Dispersion Horn.

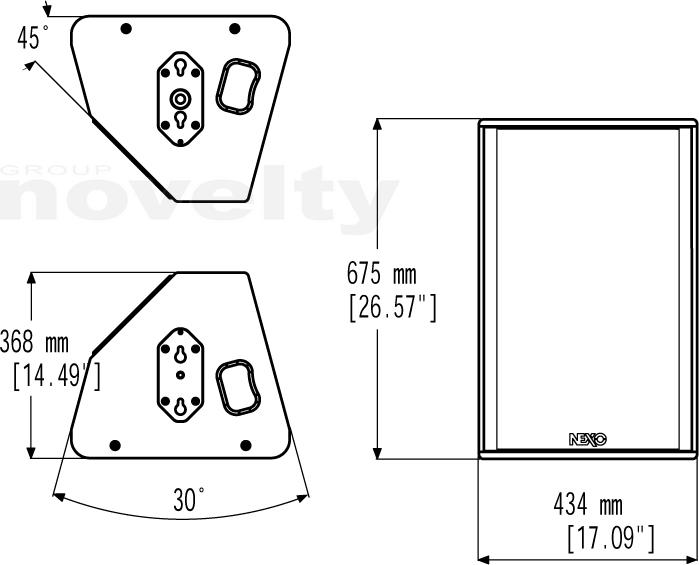

- Height x Width x Depth 675 x 434 x 368 mm (26.57" x 17.08" x 14.48").
- Weight 28 kg (62 lbs).
- Speakon Connectors 2x4 pole in & loop thru (switch passive to active inside).
- Construction Baltic Birch Ply finished with structured black coating.
- Fittings Handles 2 metal recessed pockets.

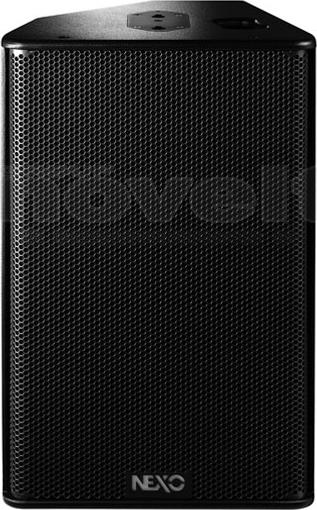

- Front Finish Moulded dark grey metal grille.

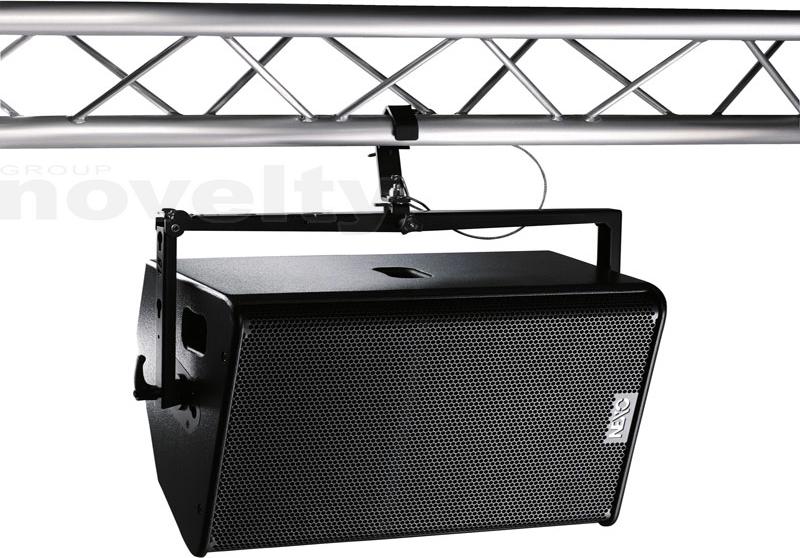

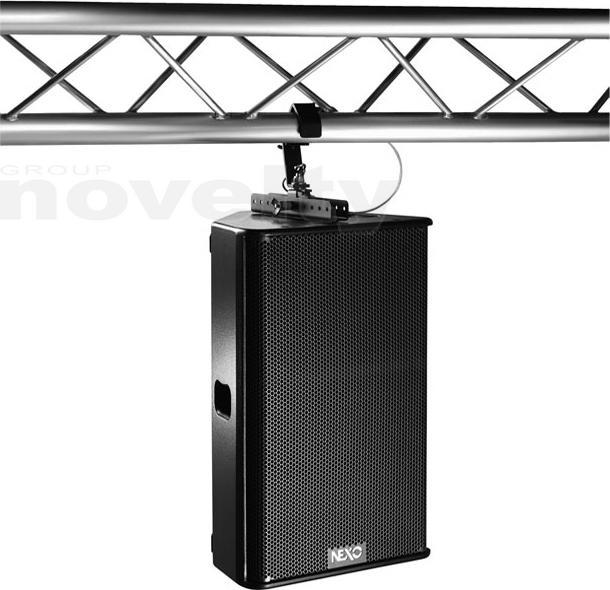

- Flying Points Two plate connecting with external accessories.

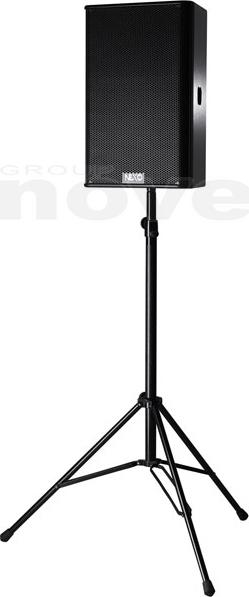

- Stand fittings Built in steel stand fitting (35mm / 1 3/8").
SYSTEM SPECIFICATIONS PS15-R2 with PS15 TDController-R2
- Frequency Response [a] 50 Hz - 18 kHz ±3 dB.
- Usable Range @-6dB [a] 47 Hz - 18 kHz.
- Sensitivity 1W @ 1m [b] 102 dB SPL Nominal / 99 dB SPL Wideband.
- Nominal Peak SPL @ 1m [b] 133 to 136 dB Peak.
- HF Dispersion [c] 50° to 100° Horizontal x 55° Vertical Rotatable Horn, 4 positions.
- Directivity : Q & DI [c] Q : 16 Nominal / DI : 12 dB Nominal ( f > 1.5 kHz ).
- Crossover Frequencies 1.1 kHz Passive or Active (internally switchable).
- Nominal Impedance Passive 8Ω or Active LF 8Ω, HF 16Ω.
- Recommended Amplifiers Passive 1000 to 2000 W 8Ω. Active LF 1000 to 2000 W 8Ω / HF 250 to 500 W 16Ω.
- Important: Active mode only available on NXAMP.
SYSTEM OPERATIONS
- Electronic Controller The PS15TD Controller-R2 is precisely matched to the PS15-R2 & RS15 cabinets and includes protections. Using
- PS15-R2 & RS15 without a properly connected PS15 TDController-R2 will result in poor sound quality and can
- damage the components.
- Dispersion configuration After dismounting the front grille from its fixings, the HF Horn can be rotated in 4 positions for dispersion configuration.

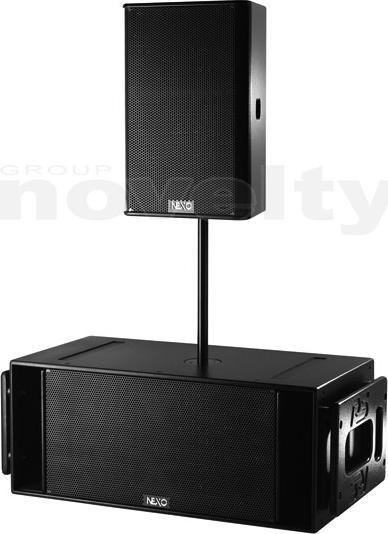

- Sub-bass The PS15-R2 can be used without optional RS15 Sub-bass. Active two-way operation with RS15 is included in the
- PS15 TDController-R2. One RS15 matches 2 x PS15-R2, additional RS15 may be used for enhanced LF capability.
- Speaker Cables PS15R2 are wired 2-/2+ on Input Speakons in Passive Mode. PS1R25 are wired LF 1-/1+ & HF 2-/2° on Input
- Speakons in Active Mode. Please refer to RS15 User Manual for RS15 for RS15 connection.
Informations
- Référence : PS15 R2
- Codart : SOLO/PS15R2L
- Télécharger nos catalogues PDF
Propriétés techniques

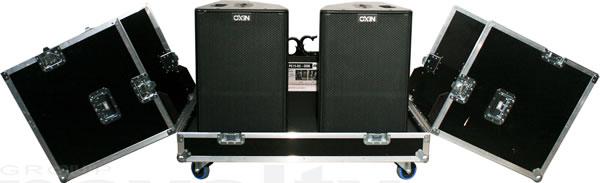

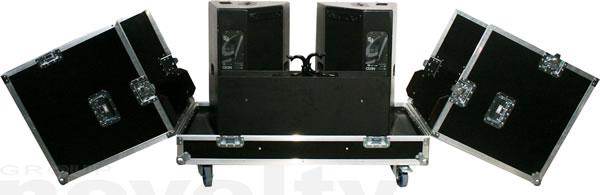

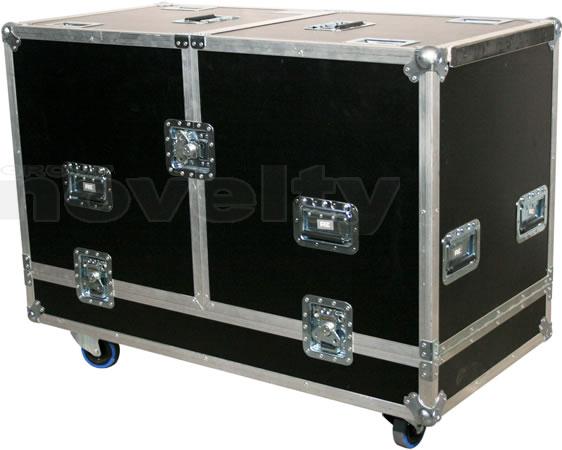

- Dimensions en flight-case (X2) : 121 x 60 x 88 cm
- Dimensions unitaires : 675 x 434 x 368 mm
- Poids en flight-case (X2) : 117,5 kg
- Poids unitaire : 28 kg
Documents à télécharger
Manuel technique : PS15 R2 - Fiche technique : PS15 R2
- Manuel technique : Brochure série PS R2
Catalogue NEXO
